22cm MultiECUScan ECU Scan Adapter Cable Bundle Cable for Fiat

MultiECUScan / FiatECUScan Adapter Cable Bundle

Cable length: 22cm

Note: There are only used as a connecte cable and does not contain any software or diagnostic cables

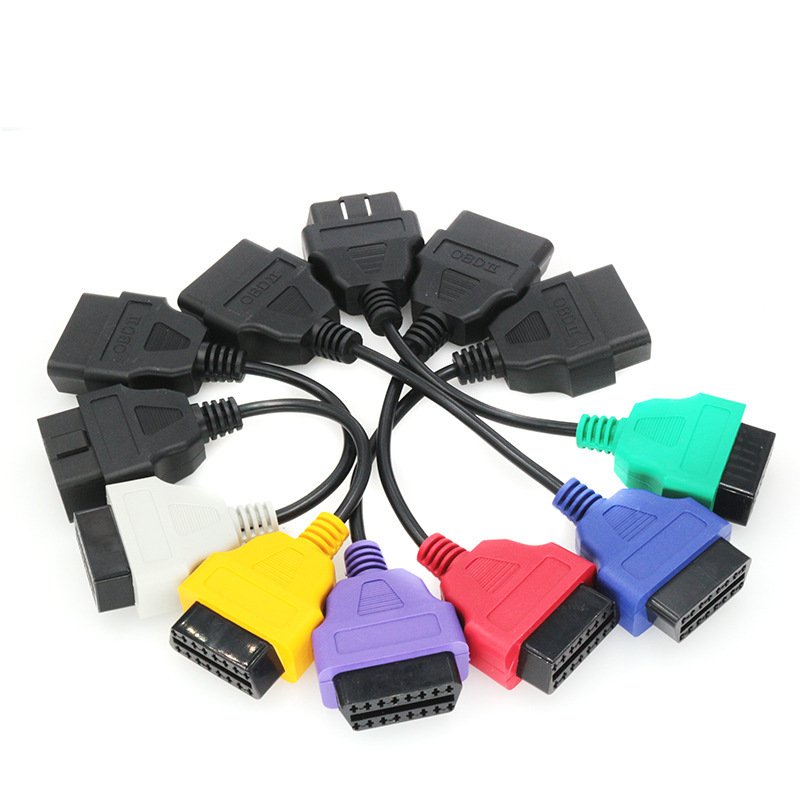

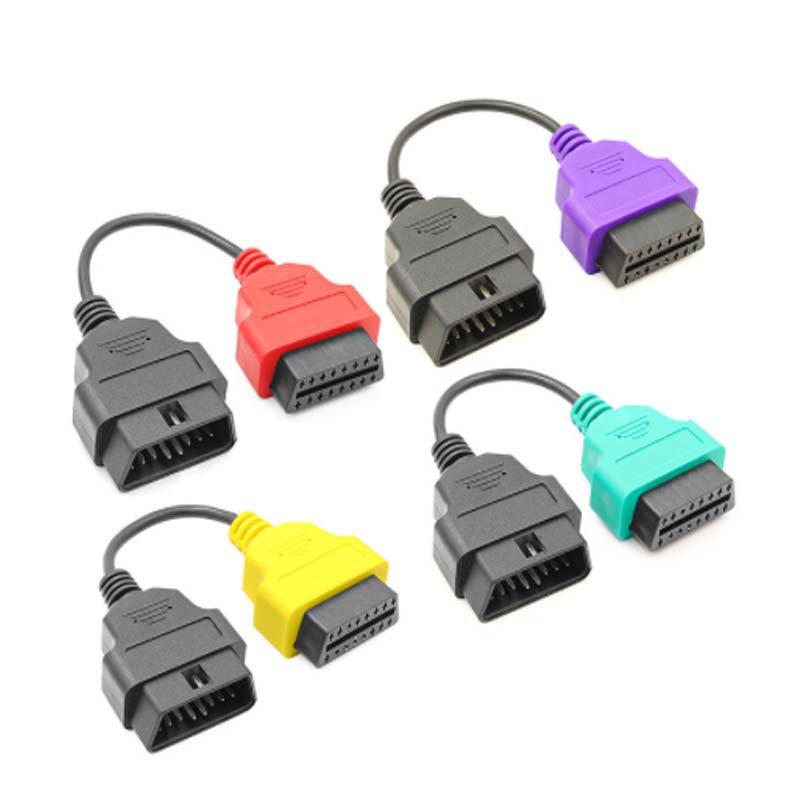

There are 4 adaptor cables included which perform different functions.

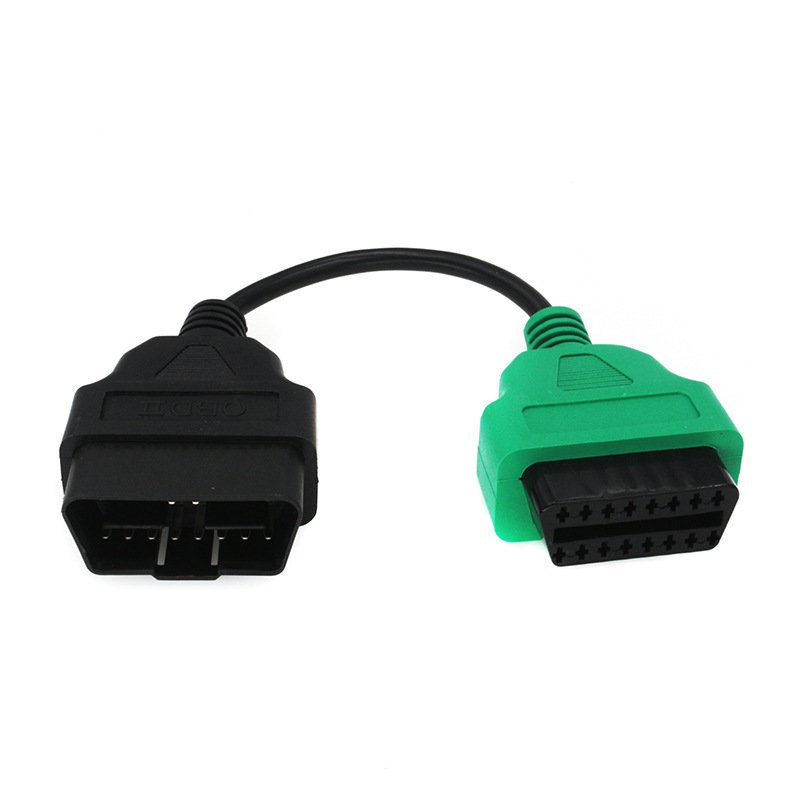

Green ABS / Power Sreeing adapter lead ( ‘Adapter 1’ on MultiECUScan website)

-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.

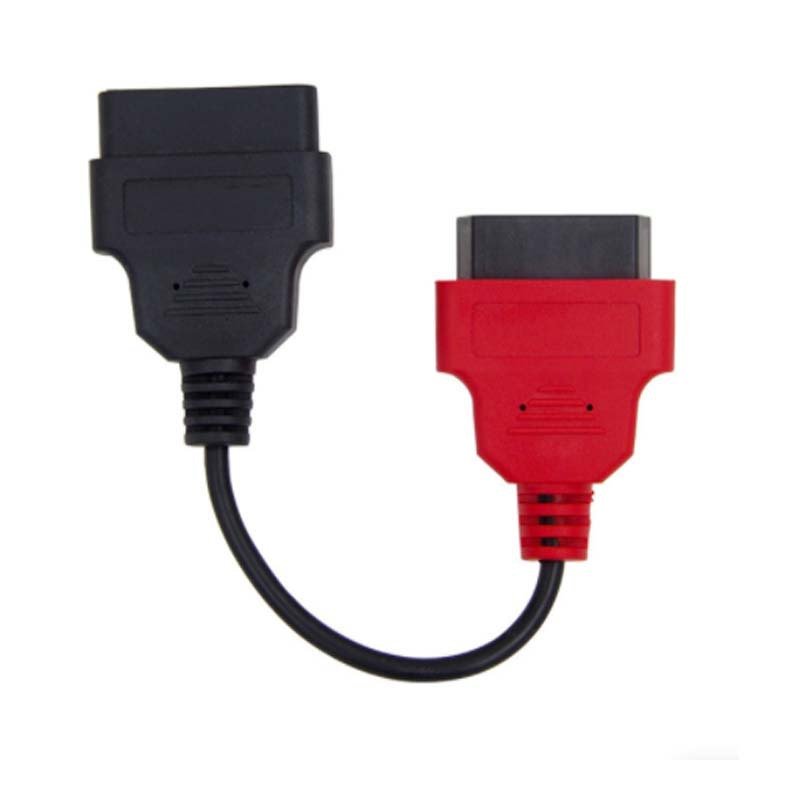

Red Airbag adapter lead ( ‘Adapter 2’ on MultiECUScan website)

-Designed to allow access to the Airbag system on supported vehicles.

This adapter has a red connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.

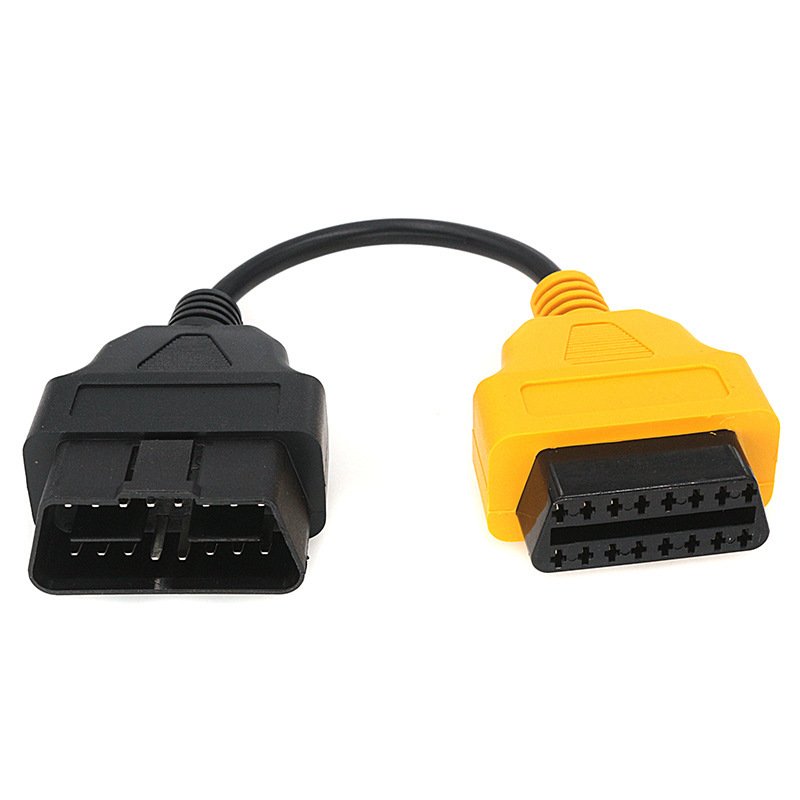

Yellow CAN adapter lead ( ‘Adapter 3’ on MultiECUScan website)

-Designed to allow access to the low-speed CAN system on supported vehicles.

This adapter has a yellow connector on one end for easy identification.

Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9

Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

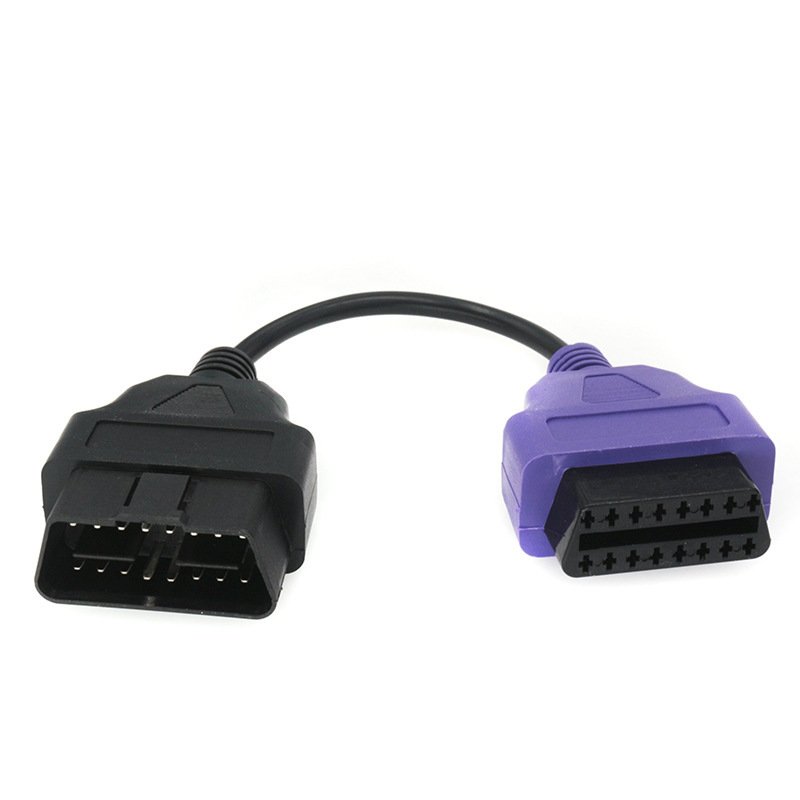

Purple Electric hood adapter lead ( ‘Adapter 4’ on MultiECUScan website)

-Designed to allow access to the electric hood system on supported vehicles.

This adapter has a purple connector on the end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.
