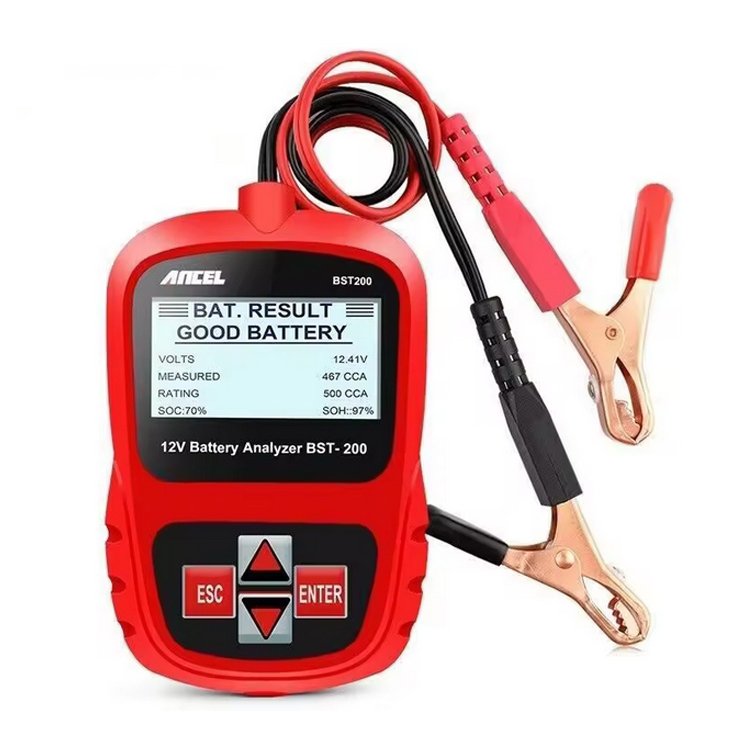

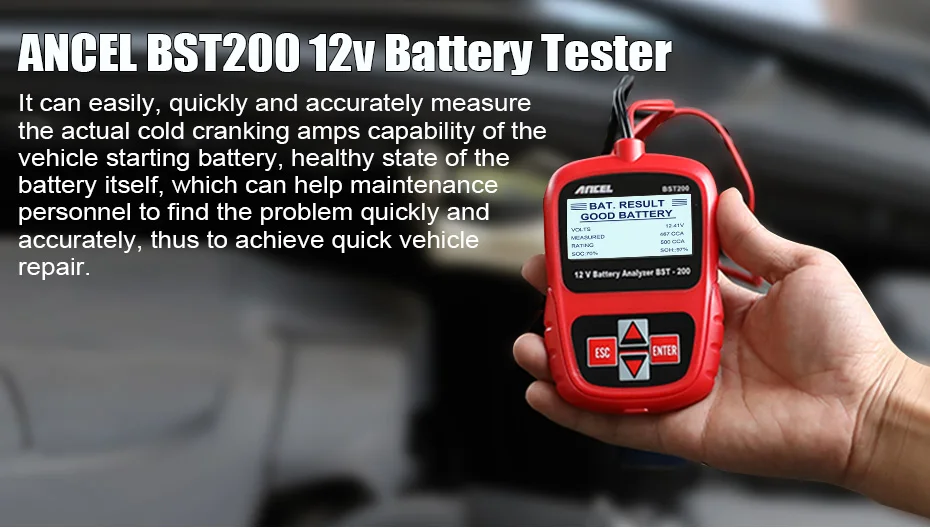

ANCEL BST200 12V Battery Analyzer 100 -1100CCA Car Battery Load Tester Automotive Battery Analyzer For Diesel Gasoline Vehicles

BST200 Car Battery Tester Features and Benefits :

🚩 A Must for You

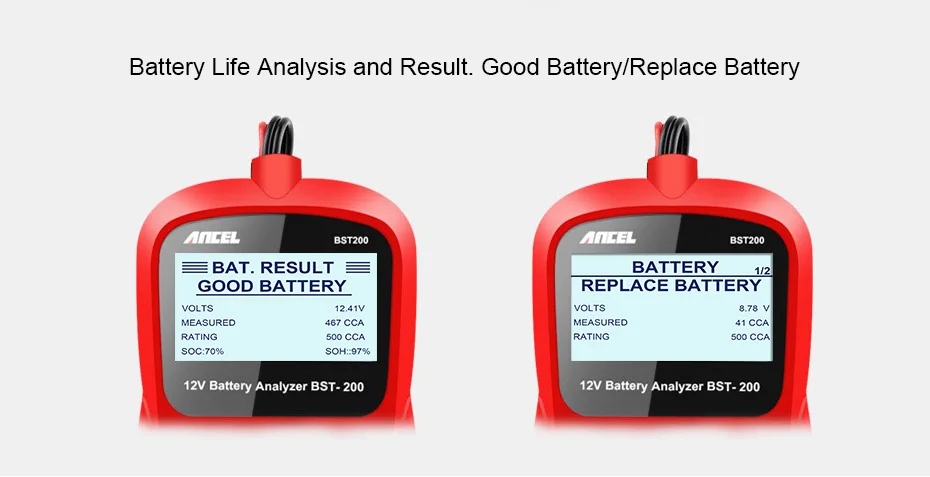

ANCEL BST200 is a12V car battery tester, can gives you the basic battery parameters such as voltage, internal resistance, battery health and charge status. Additionally, BST200 will also show you professional advice whether to replace or charge the battery, it a basic but useful car tool for private car owner.

🚩 Battery Can Be Tested

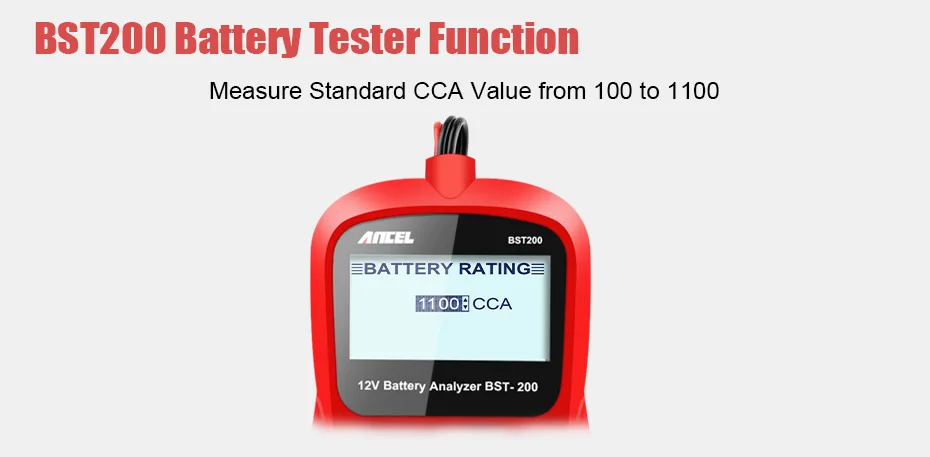

Works on automotive 12V 100 – 1100 CCA lead-acid batteries, including regular flooded, AGM flat plate, AGM spiral, and GEL batteries for cars, RV,SUV, motorcycle, boats,light truck, and even golf carts

🚩 Support multilanguages

10 languages are available, such as English, French, German, Italian, Dutch, Polish, Portuguese, Russian, Spanish, and Turkish.

🚩 Easy to Operate

Small compact design, a large backlight LCD, clear arranged keypad (UP, DOWN, ESC, ENTER buttons), and menu-driven operation make it easier to operate. Even a beginner can use this battery tester at ease

🚩 Safe And Reliable

BST200 Battery Tester designed with polarity reverse connection protection, does not emit light, heat, spark, or discharge the battery. Safe to you, your cars, your batteries, and the tester itself.

🚩 Two test models

“OUT OF VEHICLE” and “IN VEHICLE” allow you to test the battery whether it’s inside or separate from the vehicle, provide you with more accurate test data. Also, no internal battery required and get power directly from the detected battery

BST200 Battery Tester Feature:

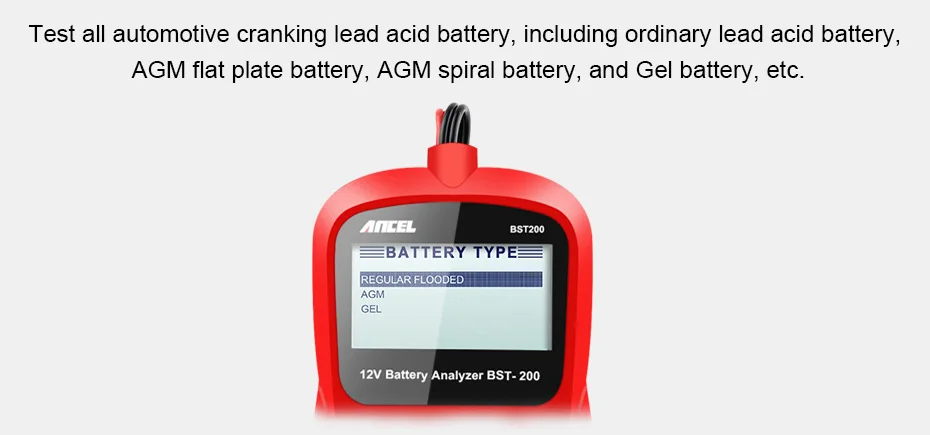

1. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

2. Directly detect bad cell battery.

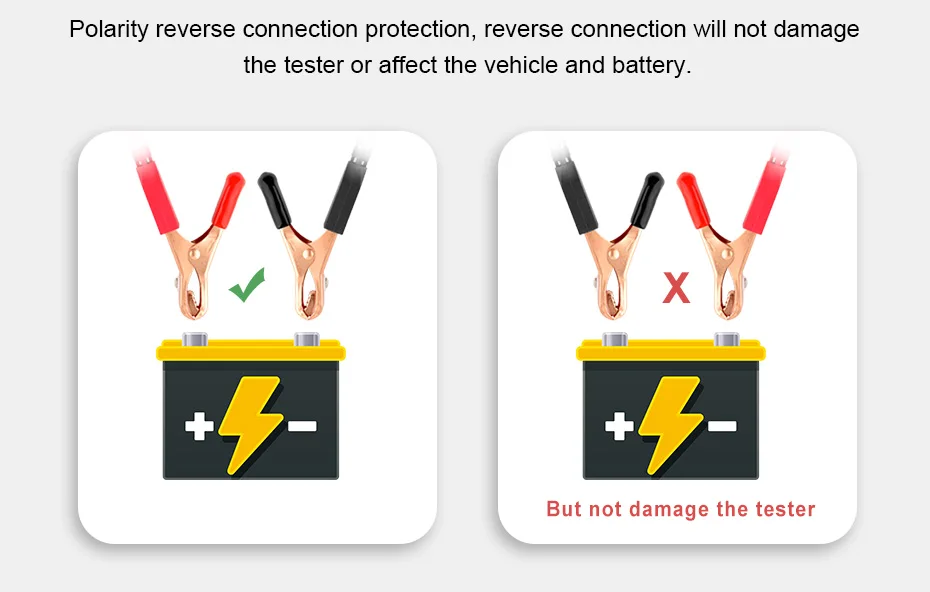

3. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

4. Directly test the battery with loss of electricity, no need to full charge before testing.

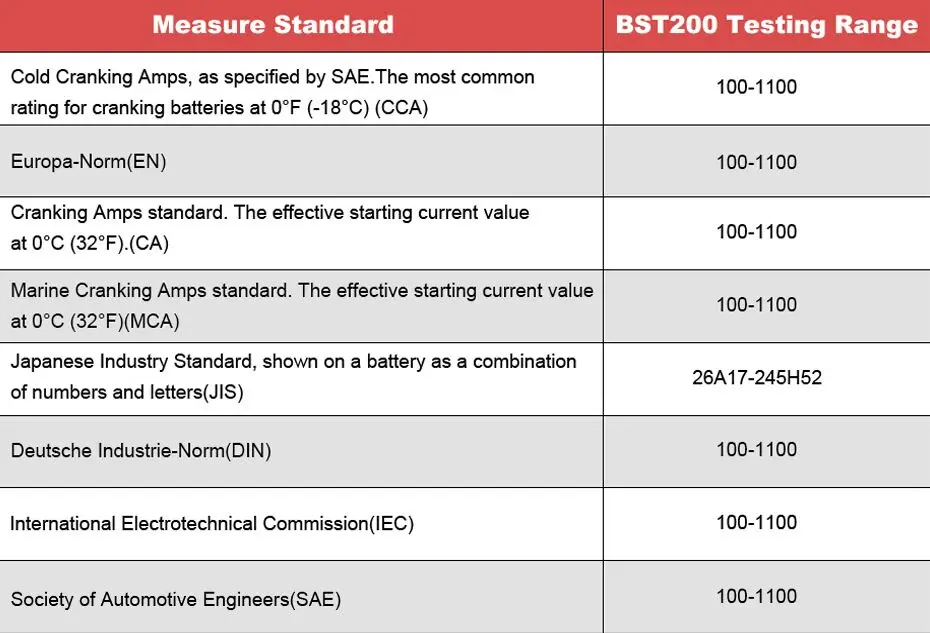

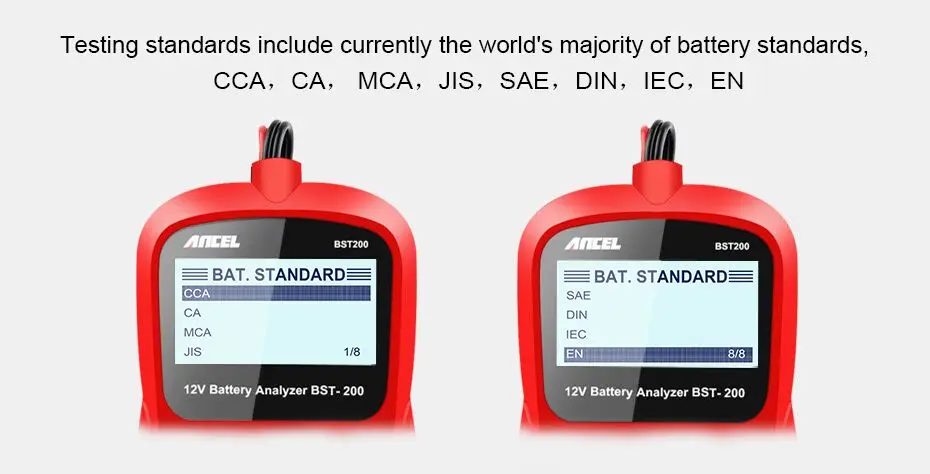

5. Testing standards include currently the world’s majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

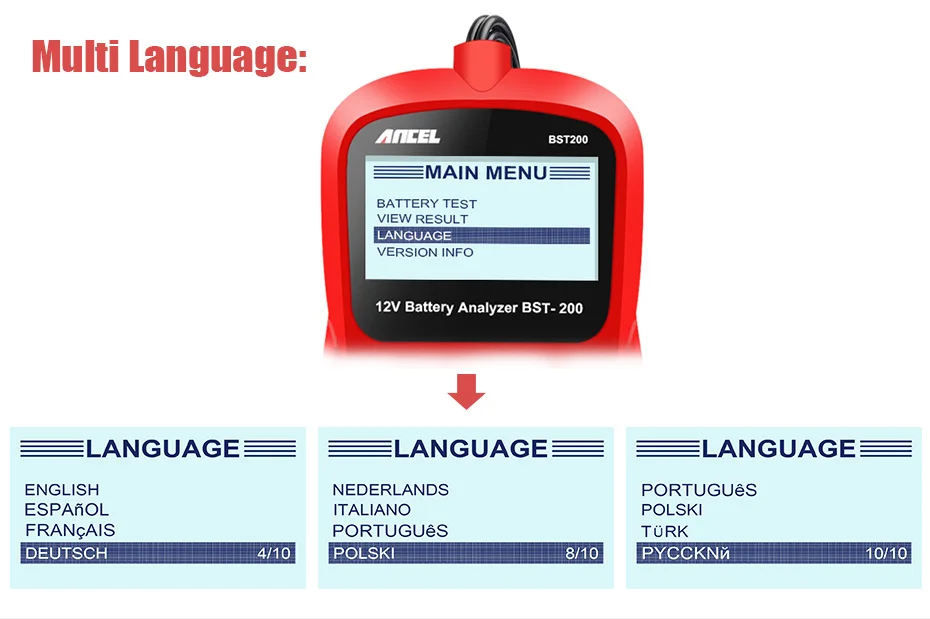

Support Multi-Language

English, Spanish, French, German, Dutch, Italian, Portuguese, Polish, Turkish, Russian

How to connect the tester:

1. Clean the battery posts or side terminals.
2. Connect the red clamp to the positive (+) terminal and the black clamp to the negative (-)
terminal.
3. Rock the clamps back and forth to make sure the clamps are firmly connected.
4. When the tester is correctly connected, it boots up automatically and shows the voltage of the battery.

NOTE:

📌Do not connect the tester to a voltage source greater than 18V DC; otherwise you may damage the tester.

📌If you are testing inside a vehicle, make sure all accessory loads are cut off, the key is not in the ON position and the doors are closed.

Specifications

➤Display: 128 * 64 pixels, backlit display screen Working
➤Temperature: 0 to 60°C (32 to 140°F)
➤Storage Temperature: -20 to 70°C (-4 to 158°F)
➤Dimensions (L*W*H): 103*75*20mm
➤Weight: 0.35KG

Package List

1. BST200 12V Automotive Battery Analyzer main unit
2. User’s Guide – provides operation instructions for the usage of the tester
