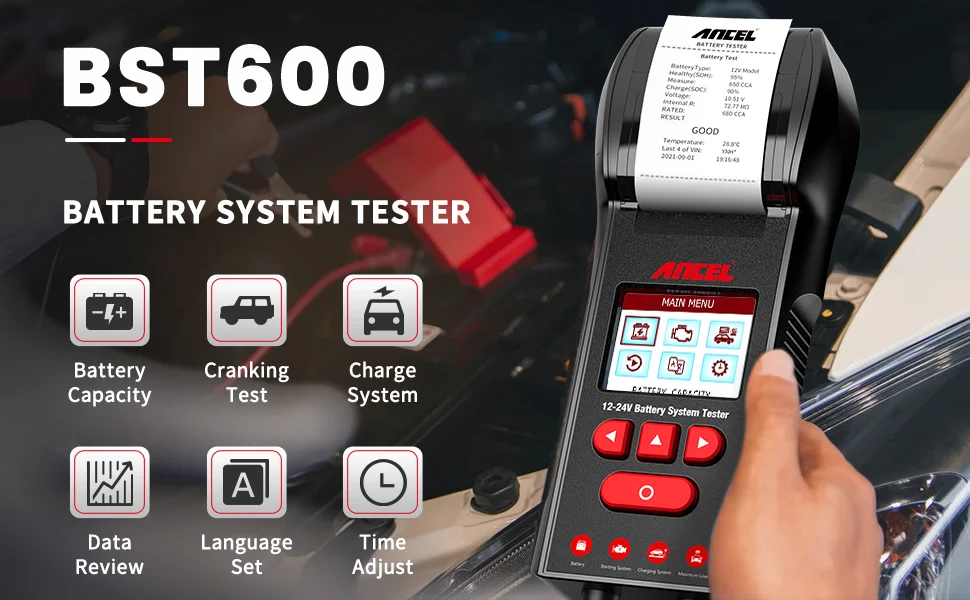

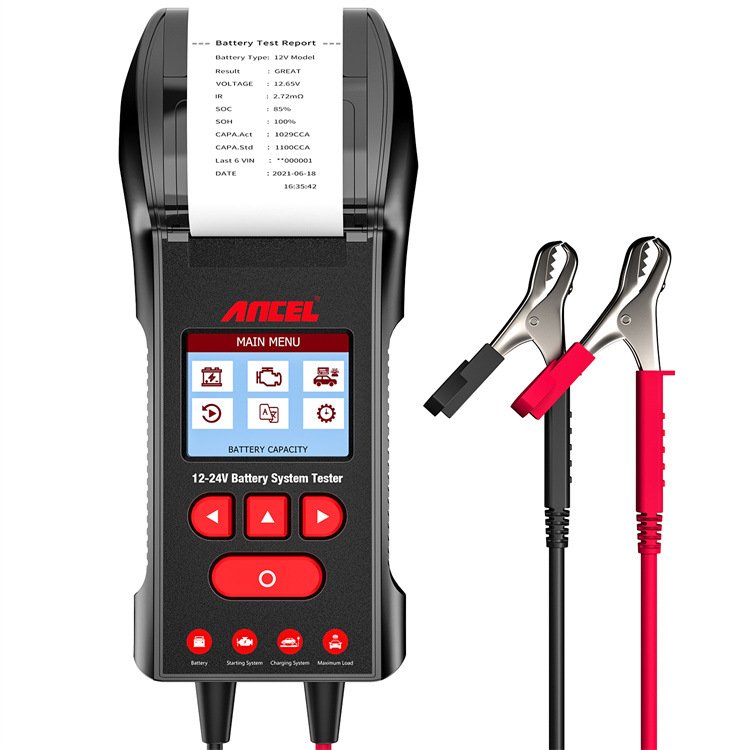

ANCEL BST600 Car Battery Tester Battery Data Analyzer 12-24V 100-2000CCA Battery Temperature Load Tester with Printer

Description

1. Tests 12V & 24V battery health , cranking system test , charging system test. Battery load test ,battery voltage test ;

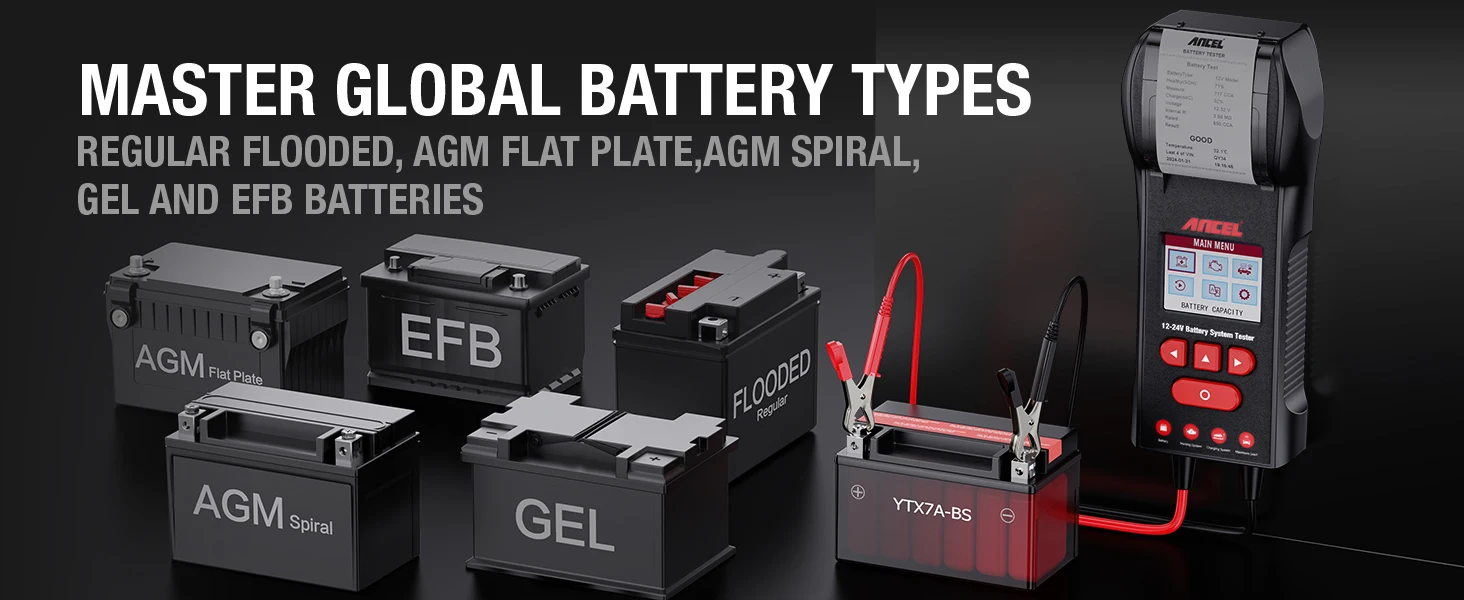

2. Test Multiple Battery Types: Regular flooded, AGM flat plate, AGM spiral, Gel and EFB;

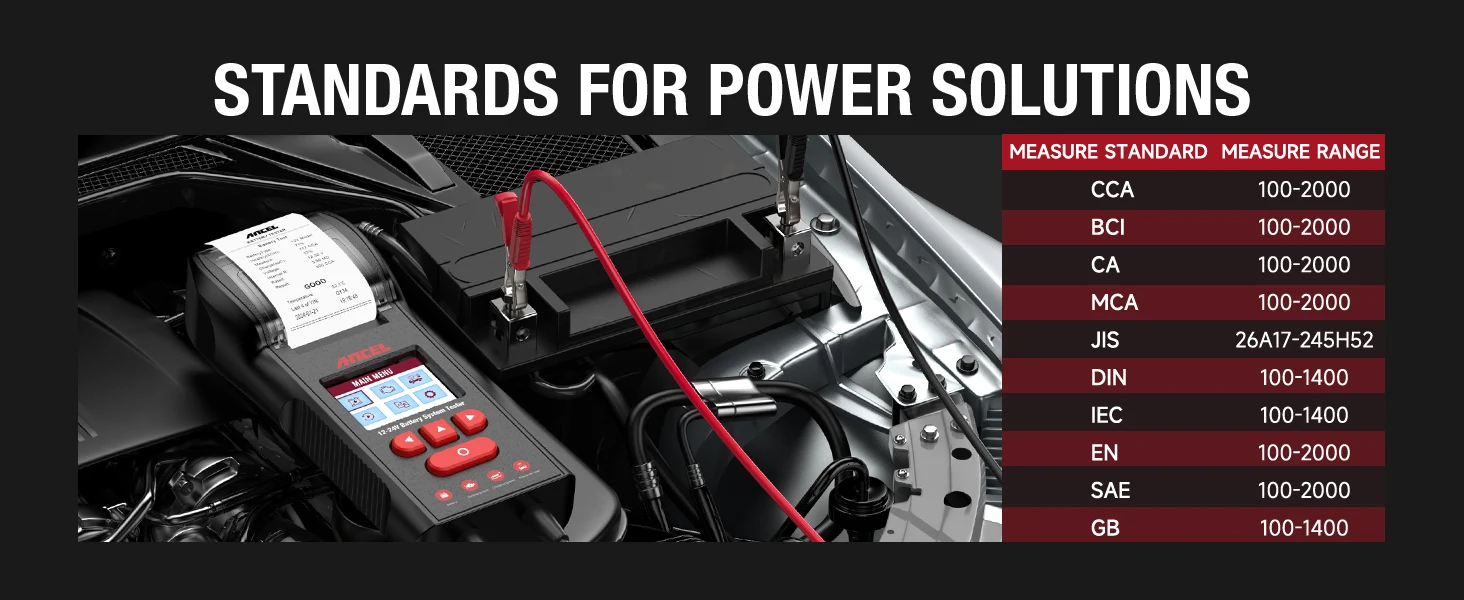

3. Supports all battery rating systems – CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

4. Test result: Status of health (SOH), Status of charge (SOC), Measure CCA value, Battery temperature, Voltage, internal resistance, Ripple Test, load test,Data Review,Print Test Report. Displays test result in merely seconds, more accurate than the low-priced tester.

5. Tests in-vehicle battery and single storage battery.

6. Quick starter analysis without disabling the ignition.

7. Easy to use and read with large backlight LCD display and menu-driven operation.

8. Support languages: English,Deutsch ,Italiano,francais,Espanol,polski,русский,Nederlands,Japan and More

【Smart Battery Solutions】Designed for comprehensive 12V & 24V battery diagnostics. Tests health, temperature, CCA values, voltage, internal resistance, Ripple voltage, SOH, and SOC. Offers insights into 12V and 24V cranking systems as well as charging systems for a complete performance overview, providing peace of mind with all-in-one diagnostics.

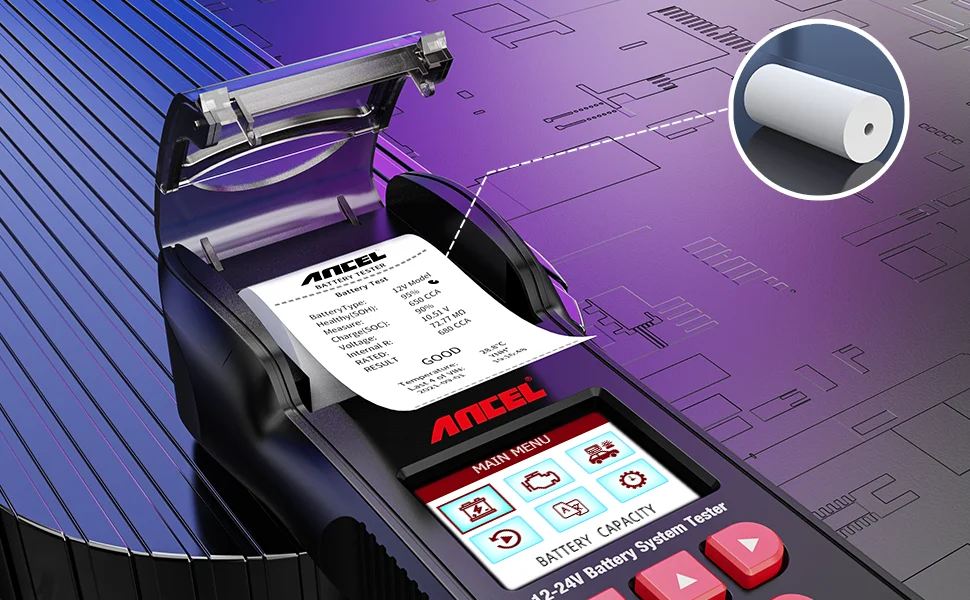

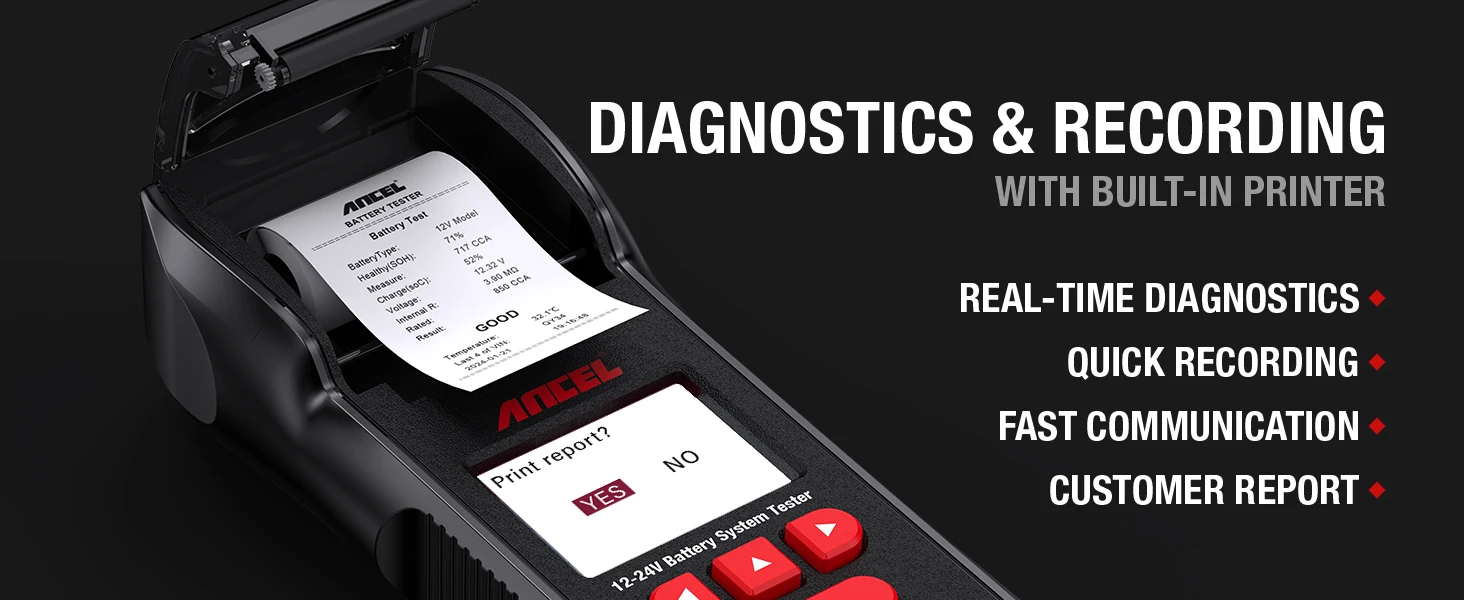

【Built In Printer】Equipped with a integrated printer compatible with standard thermal paper, this device enables effortless attachment of printouts to work orders, seamless sharing with customers, and streamlined record-keeping for preventative maintenance programs.

【Power Beyond Limits】Test 12V and 24V battery capacities from 100-2000 CCA, compatible with a diverse range of vehicles including cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and golf carts. Supports Regular Flooded, AGM Flat Plate, AGM Spiral, EFB and GEL batteries.

【Security Beyond Limits】Sturdy Clamps features Spark-proof, reverse polarity and short-circuit protection, guaranteeing both your battery and personal safety, even if you accidentally mishandle the electrodes, this innovative device will keep you and your vehicle secure. your peace of mind is our priority.

【High Design】Integrated with an Advanced Smart Chip for fast diagnosis, a 3.2″ Backlit LCD Display for clear reading, and encased in acid-resistant ABS plastic for durability and precision, featuring silicone break-resistant cable protection.

【99.9% Accurate Testing】The strong clamping force of the rust-resistant clamp reduces interference, even in humid environments, improving testing accuracy. An advanced smart chip accurately interprets results, ensuring precise battery assessment.

【Save Time with Cranking & Starter Test】The ANCEL BST600 battery tester is designed to assess the battery’s cranking/starter system,determining whether your 12V and 24V electrical systems can generate sufficient power to start the engine. swift diagnostics identify potential issues in seconds,saving you time and giving you peace of mind on the road.

Engine System Activation Load Test

Start the engine to make the tester record the lowest voltage in this process automatically. For the 12V system, the standard voltage is 9.6V; for 24V system, the standard voltage is 16V. If the lowest voltage is higher than the 9.6V (for the 24V system, the lowest voltage is over 16V), the system is good. If the lowest voltage is lower than the standard voltage, the system is not good.

Maximum Load System Test

For the 12V system, the standard voltage is 12.8V, for the 24V system, the standard voltage is 25.6V. If the lowest voltage is higher than the 12.8V (for the 24V system, the lowest voltage is over 25.6V), the system runs normally. If the lowest voltage is lower than 12.8V (for the 24V system, the lowest voltage is under 25.6V), please check if the engine belt is damaged and the wires are short-circuited.

Charging System Test

For the 12V system, the standard maximum voltage is 15V, the standard minimum voltage is 13.3V; for the 24V system, the standard maximum voltage is 30V, the standard minimum voltage is 26.6V. If the current voltage is higher than 15V or 30V, please check the voltage regulator. If the current voltage is lower than 13.3V or 26.6V, please check the connections, wires, and engine.

What size is the Thermal paper ?

Thermal paper size is specified as 2 1/4″ width by 11/5′ depth ( equivalent to 57mm W x 3 O mmD), one roll of thermal paper is included with the produte.

Does this require installing a 3V coin cell battery to update the printed time ?

It’s better to install it. The CR2032 button battery, not included, powers date and time updates, enhancing printed date & time accuracy when installed on the back.

why the paper tape jams?

Please make sure it is Thermal paper,Check for thermal paper expiration and the roller is pressed to the paper, If the roller becomes loose, it will cause poor contact between print head and paper, and no words can be printed.

Is This Battery Tester Safe for My Vehicles?

BST600 is 100% safe for its reverse polarity protection and temperature resistance. It prevents damage from incorrect connections, ensures batteries work reliably in various conditions, reducing the risk of overheating and maintaining safety.
