ANCEL PB50 12/24V Automotive Circuit Tester Inspection Tools Power Circuit Probe Kit Electrical System Mechanical Works Tool
With the PB100 probe tester, you can check voltage and ground signals in a typical DC circuit. However, the kicker is that you can also use it to send voltage and ground signals. It works like a test light that can power circuits or provide a good known ground. This way, you can effectively test components and circuits without having to break out the old alligator clips and jumper wires. You can power or ground a circuit directly through the top of the device.
ANCEL PB50 Product Function:

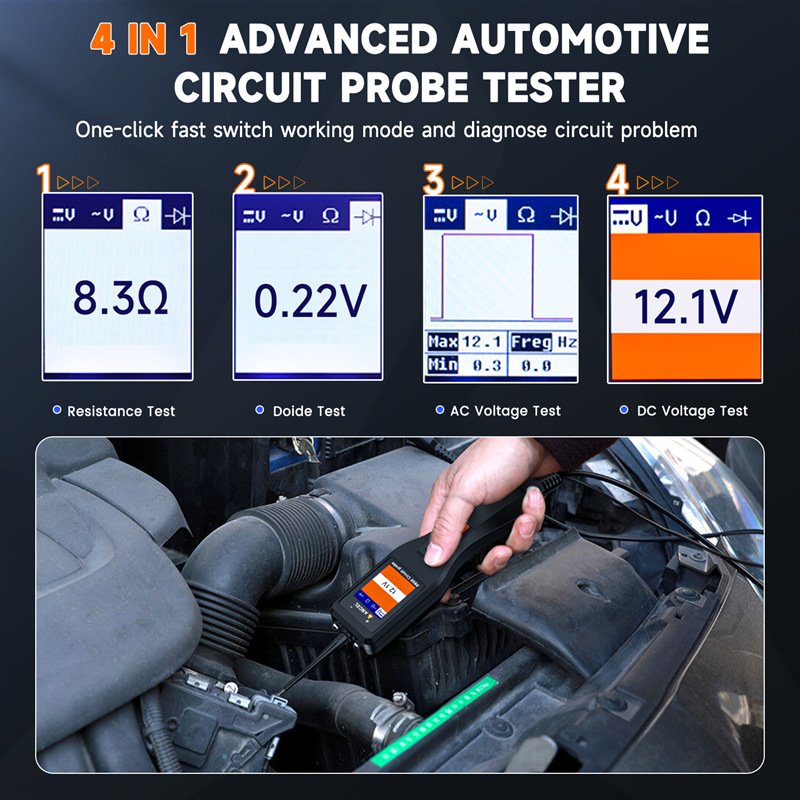

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.
✔️DC voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.
✔️AC voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. Voltage and frequency.
✔️Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
✔️Diode
In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reversebias.
ANCEL PB50 Electrical System Circuit Tester Functions:
1. Power injection, measuring, ground testing, polarity checking, continuity testing and component activation.
2. Read the AVO meter, voltage, current, and resistance.
3.Energize the electrical components, such as the cooling fan, relay etc.
4. Activate the components
5. Determine the positive, negative and open circuit.
6. Test the bad ground contacts, follow and locate short circuits without wasting the fuse.
7. Test the continuity of the power switch, relay and diode.
8. Protect the tool from overload.
9. Allow you to work in the dark area by using the built-in head light.
10. Test along the vehicle by the long cable.
Product Specifications
➤ Electrical Specifications
● Supply Voltage 8V DC ~ 30V DC
● DC/ AC Voltage Test -110V ~ 110V
● Frequency 0Hz ~ 1Mhz
● Duty Cycle 0.0~100.0%
● Fuel Injection Voltage: 0~180V, Time: 0~25ms
● Resistance 0~1MΩ
● Diode Germanium diode, silicon diode
● Rating Current 1A~8 A
➤ Instrument Trip Time:
● 8 Amps: Hold > 1 hour.
● 12 Amps: current: trip in one hour.
● 16 Amps: current: trip in 3-30 seconds.
● 24 Amps: current: trip in 0.5-4.0 seconds
➤ Tool Specifications
● Display TFT color display (160×128 dpi )
● Operating Temperature -10 ~ +60°C ( 14 ~ 140℉)
● Storage Temperature -20 ~ +70°C (-4 ~ 158℉ )
● Dimensions (L*W*H) 200mm*52mm*39mm
● Net Weight 1.2Kg
Packing List:
1pc Vehicle Super Probe
1pc Probe Tip
1pc Crochet Hook
1pc Crochet Hook Extension Cable
1pc Battery Clamp Cable
1pc User’s Manual
1pc Rugged Blow Molded Case
