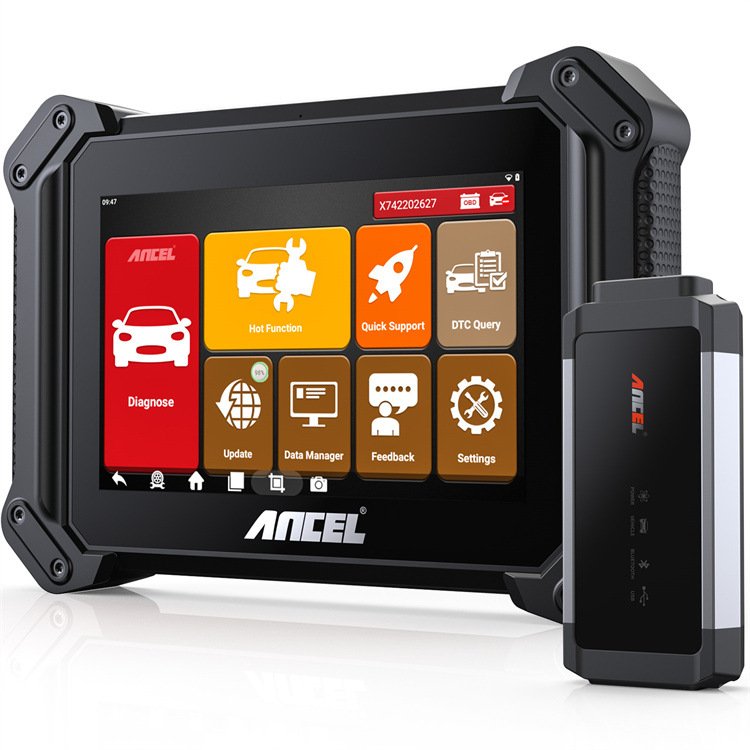

ANCEL V6 PRO Full System Car Scanner Car OBDII Diagnostic Tool Maintenance Reset Instrument IMMO DPF ABS 25+Reset

All-around Bidirectional Control / Active Test

An accurate and fast bi-directional scan tool is a must for any auto professional these days. If you are looking for an advanced scan tool that will pay for itself in a short time, V6 PRO+ is the great choice for you!

What is Bidirectional Control / Active test?

Bi-Directional Control capability means it can perform Active Tests to access vehicle-specific subsystems and component tests. The tester outputs the command to the ECU to drive the actuators to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators. It is necessary when you want to activate and control an onboard system remotely.

What exactly can Bidirectional Control / Active test do?

1. Lock / unlock door
2. Rolling up / down a window;
3. Turn on/off the radiator fan, lights, sound horn, fuel pump;
4. Cycling the a/c clutch on and off;
5. Helping with an emissions leak test;
6. Modulate the throttle;
7. Inlet & outlet valve;
8. Wheel speed sensor supply;
9. Operate Mirros/Fuel Injector Balance/ Injector Buzz Test Door Lock/Window/Horn/ Light/ Headlamp Test, etc.

After performing actuation tests, you will be able to view reports via the live data function. By monitoring the functions directly, you can locate and solve the problems quickly.

NOTE: Please send your VIN to check compatibility, as vehicles work differently.

One-stop Car Care: 25+ Maintenance & Reset Services

The upgraded V6 PRO professional diagnostic tool has 25+ services and is definitely the most cost-effective diagnostic scanner on the market. Here are some of the most popular services:

Oil Reset:

When the service lamp on the instrument cluster is up, changed the oil, then turn off the oil light and reset the service mileage.

ABS Bleeding:

When the ABS contains air, the ABS bleeding function is required to bleed the brake system to get a firm brake pad.

EPB Reset:

It performs the maintenance of electronic parking brake systems. The brake pad reset is required to turn the MIL off after replace the brake pad.

IMMO Keys function (All Keys Lost, Add Key, Reset Key):

It supports add the new key and remotely disable the lost one when the key was lost to prevent your car from being stolen.

BMS Reset:

When the battery shows aging or damage, need to re-match and registering the battery, then clear the fault codes from the dashboard and reset BMS module.

DPF Regeneration:

The diesel filter will become clogged after a long time. Once the engine recognizes the DPF clogging, it will trigger regeneration. This function performs diesel filter cleaning to clear the blockage and reset the DPF light.

Injector Coding:

Write the new injector code to the ECU after replacement of injector so that the cylinder can identify the new injectors to lower fuel emissions.

SAS Calibration:

The steering angle sensor is used to detect the rotation angle of the steering wheel. This function performs calibration for the steering angle sensor to clear fault memories of the steering angle sensor.

Throttle Adaptation:

After clearing or repairing the electronic throttle, re-learning and adapt throttle sensor position is necessary to precisely adjust the throttle opening.

TPMS Reset:

The tire pressure monitoring system can perform real-time automatic monitoring of various tire conditions. When the tire pressure is insufficient, need to perform tire pressure reset after replace the tire or sensors.

AT Set/Gearbox Matching:

Perform complete the self-learning of the gearbox and improve the quality of shifting. After the gearbox is disassembled or repaired, it will cause problems such as shift delay. At this time, this function needs to be executed to make the gearbox automatically compensate according to the driving conditions to achieve a more ideal shift quality.

Gear Learning:

In the case of replacing the engine ECU, crankshaft position sensor, crankshaft flywheel, or shows fault codes “tooth not learned”, tooth learning must be performed.

Suspension Calibration:

This function can adjust the height of the vehicle. The following situations need to perform this function to adjust the vehicle height sensor for calibration:

1. After replacing the vehicle height sensor or control module in the air suspension system.

2. When the level of the car is wrong.

Why Choose the V6 PRO+ Bluetooth Diagnostic Tool?

ANCEL V6 PRO+ is a Bluetooth diagnostic scanner based on Android 10.0 tablet, works on over 10000 cars and covers most of the necessary common functions, such as Bi-directional control, active test, IMMO service (car key programmer), OE -level full system diagnosis, 25+ reset functions, etc.

1. Bi-directional Control/Active Test: Allows you to perform active test on various actuators to test its integrity & functionality.

2. All System Diagnose: In-deepth diagnosis all available systems and modules to quickly pinpoint problems to help you fix them effectively.

3. 25+ Most Popular Reset Functions: Maximize the vehicle’s potential while troubleshooting.

4. Full OBDII Test Modes: Such as retrieve ECU information, read codes, clear codes, data stream display, DTC lookup, etc.

5. 2 Years Free WIFI update, No Additional Software/Subscription Fees!

6. Clear the Language Barriers: Supports 11 languages, including English, French, Spanish, German, Russian, Italian, Polish, Portuguese, Dutch, Japanese and Korean.

7. Robust Hardware Expansion: Bluetooth 5.0 wireless and easy connectivity, legible and responsive 8-inch touch screen, Android 10.0 operating system.

8. Long Endurance 8000 mAh battery, One-click screenshot, record video, camera (5.0 megapixel, auto focus, with flashlight), vehicle software, diagnostic report, data stream record & playback & print, feedback and more.

Multiple universal languages support:

Support 11 mainstream languages, such as English, French, Spanish, German, Russian, Italian, Polish, Portuguese, Dutch, Japanese and Korean.

Manufacturer-Level Diagnostics ( turn off the warning light)

OEM-Level Full Systems Diagnostic

1. Drive system: Engine, Transmission, Battery Energy, All wheel, Transfer case, Electrical Machine Electronics, Diesel Fuel Pump, Gear, and more…

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more…

3. BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more…

4. Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system…

OBD-Level Diagnostic

1. Retrieve ECU Information: Read and display the control system module information detected from ECU.

2. Read Fault Codes: Read the fault code information retrieved from the vehicle system module to identify where the fault location is.

3. Erase Fault Codes: Clear the fault code retrieved from the vehicle system module to turn off the MIL after repairs.

4. Review Live Data: View live text or graphic data of working system and get freeze frame data when the problem occured.

5. Other OBDII Test Modes: DTC look-up, view freeze frame data and I/M readiness monitor status, O2 sensor test data, on-board monitoring and EVAP system test

ANCEL V6 PRO Full System Diagnostic Scanner support car brand

ASIA Area:
for ACURA,for ASIAGM, for DAEWOO, for DAIHATSU, for HONDA, for HYUNDAI , for INFINITI, for ISUZU, for KIA, for LEXUS, for MAZDA, for MITSUBISHI, for NISSAN, for PERODUA, for PROTON, for SSANGYONG, for SUBARU, for SUZUKI, for TOYOTA, for TATA, for MAHINDRA, for MARUTI.

EUROPEAN Area:
for ABARTH, for ALFA, for ASTON MARTIN, for AUDI, for BENTLEY, for BENZ, for BMW, for BUGATTI, for CITROEN, for DACIA, for FERRARI, for FIAT, for FORDEU, for JAGUAR,for LAMBORGHINI, for LANCIA, for LANDROVER, for MASERTI, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for SAAB, for SEAT, for SKODA, for SMART, for VAUXHALL, for VOLVO, for VW.

AUSTRALIA Area:
for HOLDEN, for AU FORD .

CHINA Area:
for BYD, for CHANGAN, for CHANGHE, for CHERY, for EMGRAND, for ENGLON, for FOTON, for GEELY, for GLEAGLE, for GWM, for HBSH, for HUACHEN, for LIFAN, for WULING, for YUAN.

Brazil Area:
for GM,for Fiat,for VW

Product Activation

(1)Click the Update fucntion on the home page

(2)Please activate the product in the first login

(3)Fill in the activation information, and click ACTIVATION

(4)The activation request sent, your mailbox has received the activation link.

(5)Log in to the mailbox where you just filled in the activation information and click the activation link to complete the activation.

ANCEL V6 PRO Product Specification

System :Android 10.0 system
Memory:2GB+32GB
Resolution:1280*800
Screen:8 ” touch screen
Battery:8000 mAh 6 hours continuous
Interface:Type-C charging port

Package List

1*V6 PRO Main tablet

1*Plastic box

1*OBD2 cable

1*Charge cable

1*US Plug/EU Plug

1*VCI Model

1*Manual

1*Password paper
