Autel MaxiDiag MD806 OBD2 Diagnostic Scan Tool Read/Clear Codes Four System Diagnosis Oil Reset PCM TCM ABS SRS EPB DPF SAS BMS

MD806 — 4 System Test:

Four Systems Diagnoses for Providing Ideal Solutions With advanced diagnostic capabilities, this diagnostic tool allows you to complete more repair works on Engine, Transmission, Anti-lock Brake System and Supplementary Restraint System quickly and easily, thus your safety can be guaranteed.

1、Reading DTCs -Allows reading diagnostic trouble codes from the vehicle’s control systems to locate problem areas, and offer possible solutions;
2、Clear DTCs – Allows erasing the fault codes easily after certain repair works have been finished, and then the warning light will be turned off automatically;
3、Live Data Stream – Allows retrieving real-time live data stream of the four systems and you can change the displayed modes in text, waveform graph, and also digital;
4、ECU information – Allows viewing ECU information of tested control units including unit type, version number, and other specifications

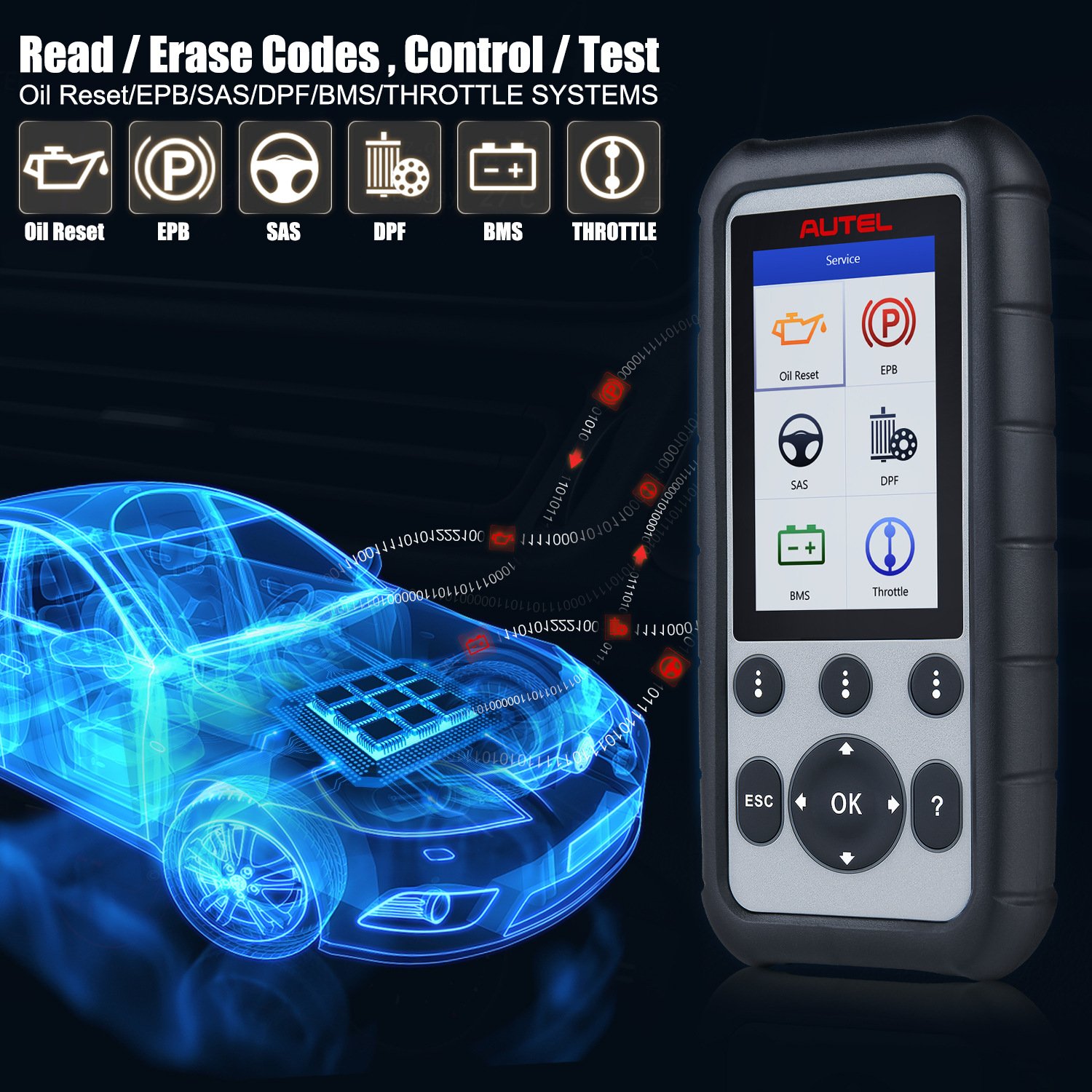

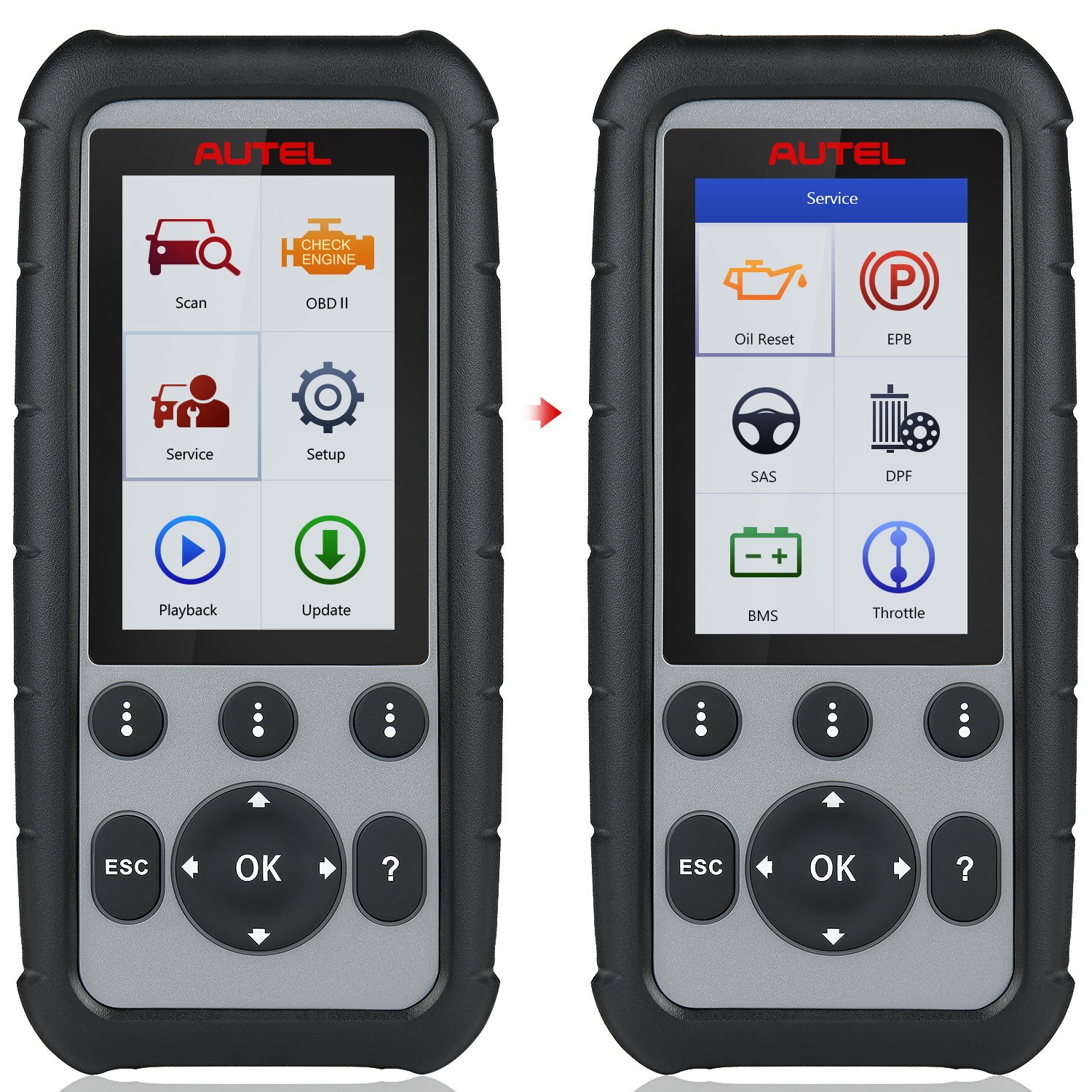

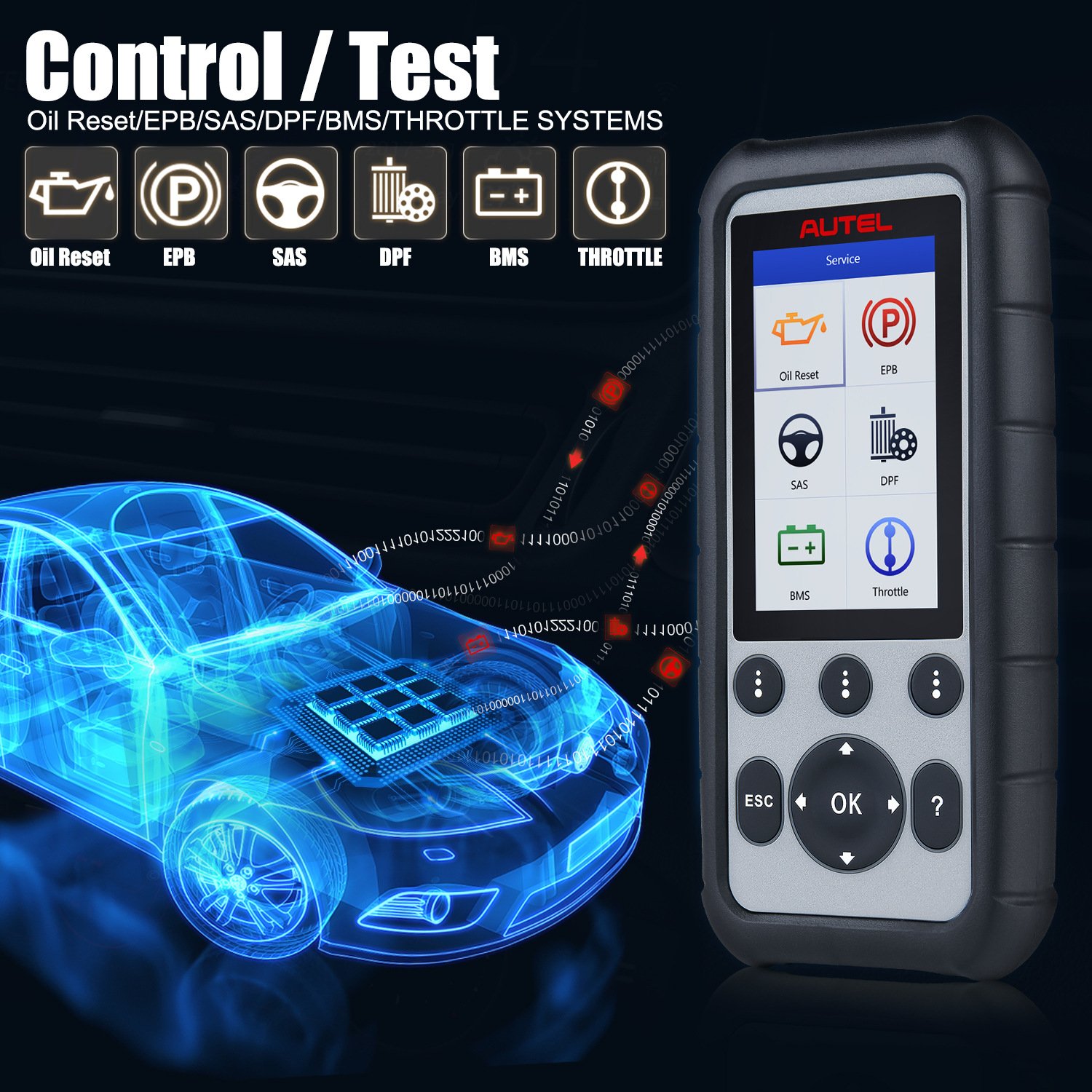

MD806 5 Special Functions:

1. Oil Reset When the oil change operation is completed, using this car scanner to rest the system is needed so it can calculate when the next oil change is required.
2. EPB Service It has a multitude of uses to maintain EPB, including deactivating and activating the brake control system, assisting with brake fluid control, etc.
3. SAS Service It can be used to effectively perform calibration for the Steering Angle Sensor, and clear fault memory.
4. DPF Service It allows you to clear the blockage through the continuous burning of the particulate matter captured in the DPF filter.
5. BMS Service With this function, you can perform a reset on the vehicle battery for clearing the fault information and re-match the battery.

They Both Can Do Full Obd2 Functions:

Designed with full OBD2 Functions, this car scanner makes it easy to receive clear, concise information about the emission problem on a vehicle, without necessarily having to get a technician involved in the process.

Read & clear detected diagnostic trouble codes and turn off the Check Engine Light;
Read I/M readiness status to have a vehicle inspected for state emissions compliance;
View graphical live data of vehicle’s computer module(s) for easy analyses;
View the vehicle’s operating parameters at the moment a DTC is detected;
Show the last results of the O2 sensor test in the graphic display for troubleshooting; Read the results of on-board diagnostic
monitoring tests for specific components/systems;
Component Test: Allow initiating a leak test for the vehicle’s EVAP system;
Retrieve the vehicle information of VIN, CINs, and CVNs completely.

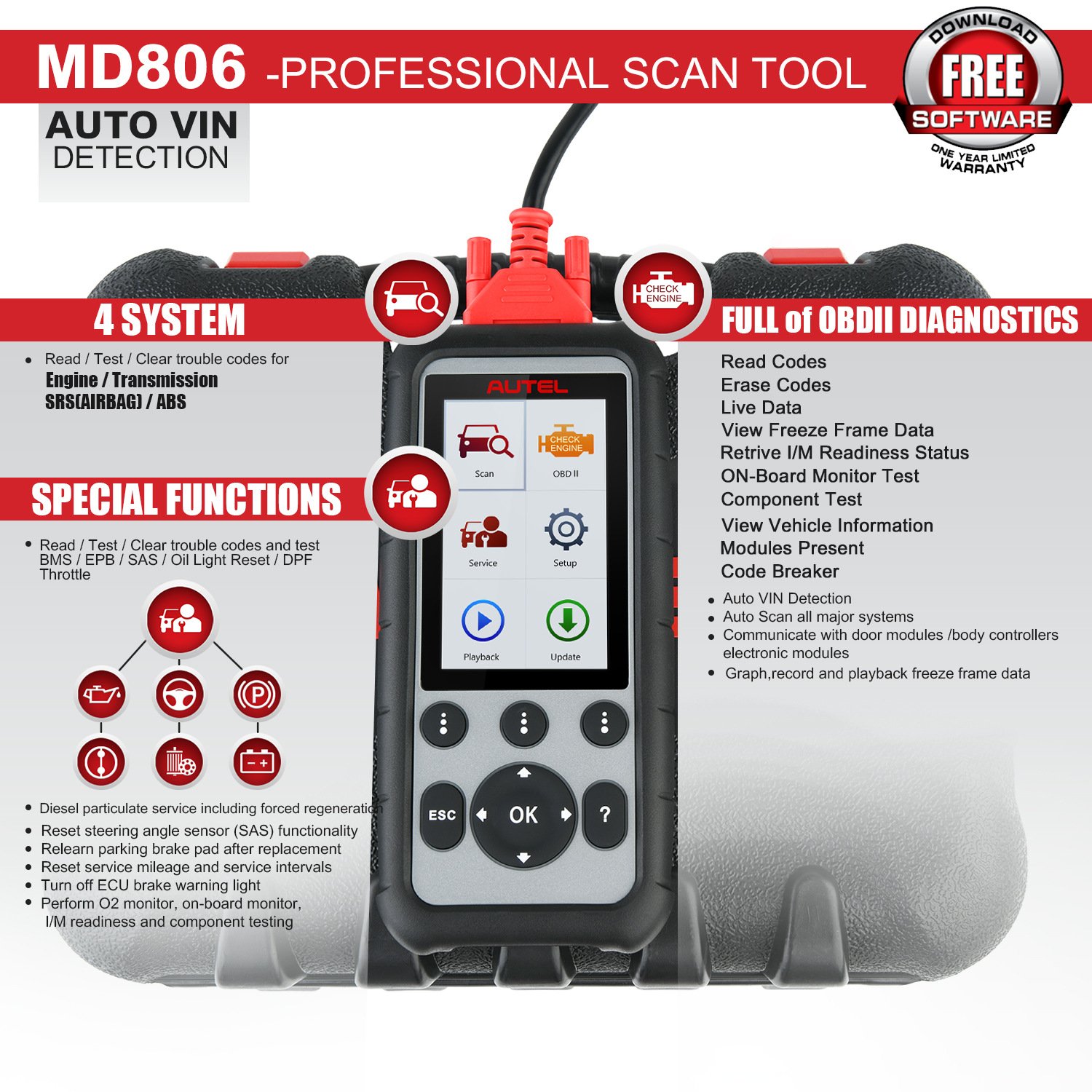

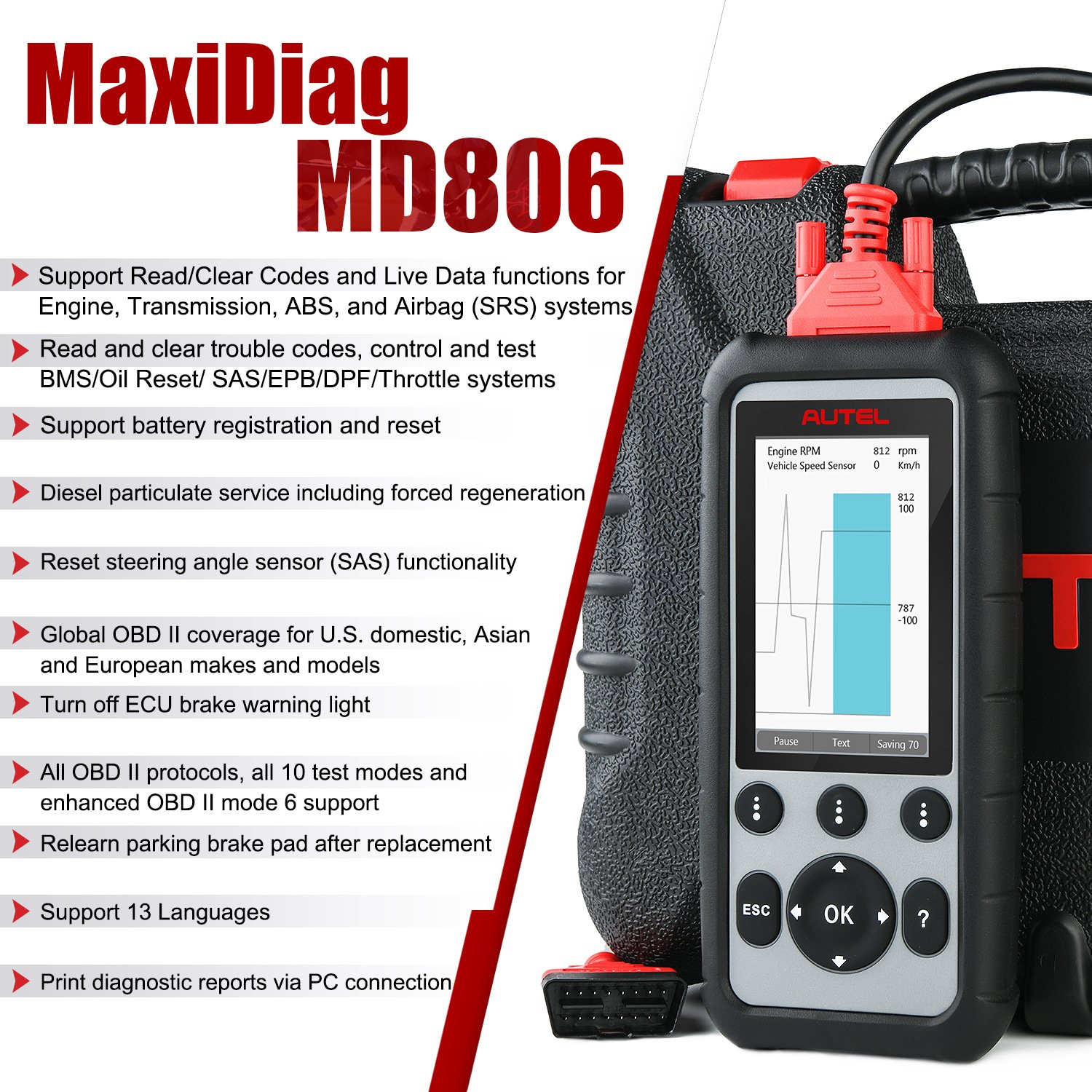

Features:

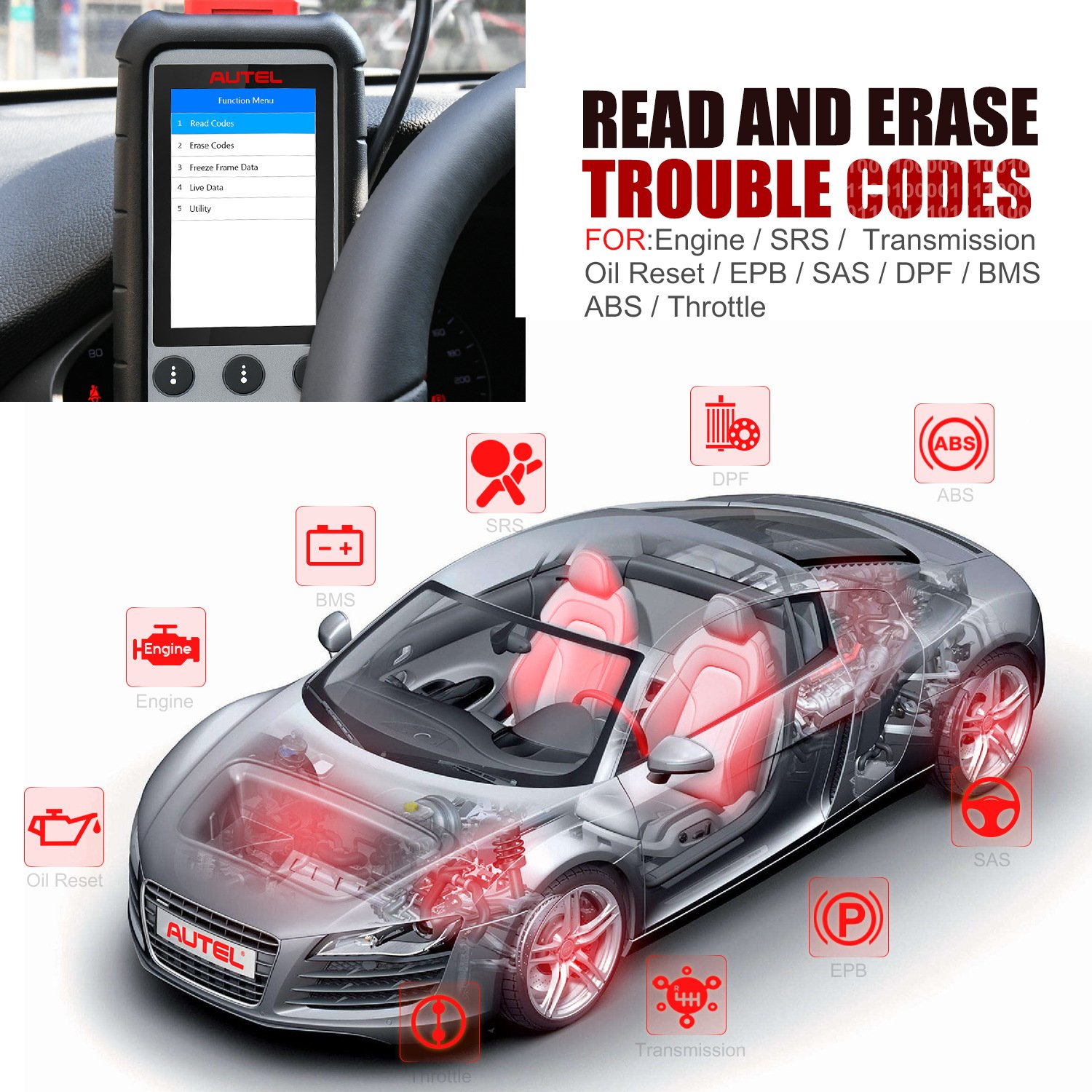

Support Read/Clear Codes and Live Data functions for Engine, Transmission, ABS, and Airbag (SRS) systems
Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
Support oil service reset
Support battery registration and reset
Diesel particulate service including forced regeneration
Reset steering angle sensor (SAS) functionality
Relearn parking brake pad after replacement
Reset service mileage and service intervals
Turn off ECU brake warning light
Perform O2 monitor, on-board monitor, I/M readiness and component testing
Print diagnostic reports via PC connection

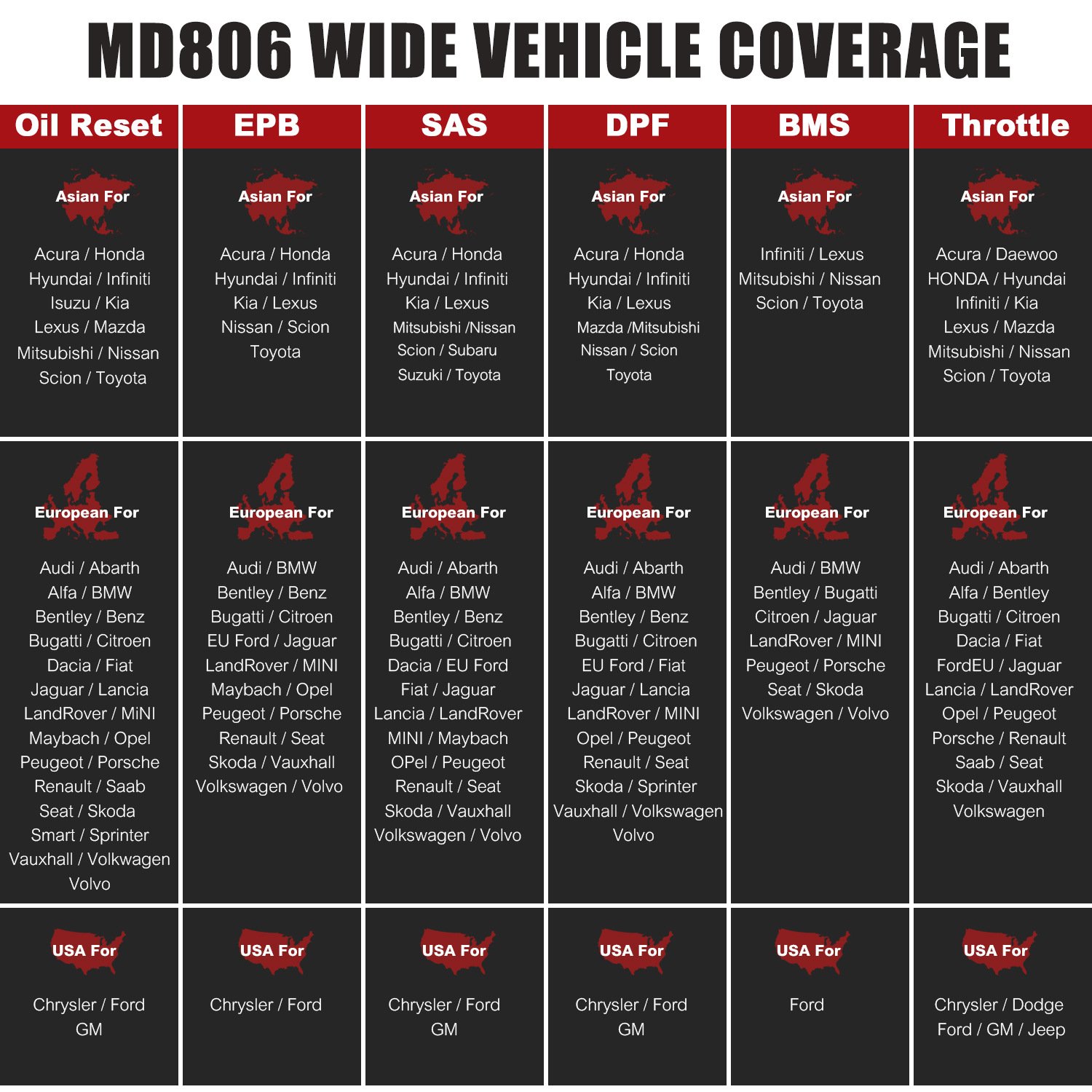

Global OBD II coverage for U.S. domestic, Asian and European makes and models
All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support
1 Year limited warranty and free update for lifetime.

Specifications:

Processor ARM® Thumb® Processor (400 MHz)
Memo 32MB, 166 MHz
Display: 4.0 inch LCD with 800×480 resolution
Connectivity: Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption: 1.7 W
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 5% – 95% non-condensing
Housing: Strong plastic housing with protective rubber boot
Dimensions: (W x H x D) 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight: 313 g (0.69 lb.)

Package Accessories :

1 x Main Unit
1 x USB cable
1 x OBDII cable
1 x SD Card
1 x User’s Manual
1 x Carry case
