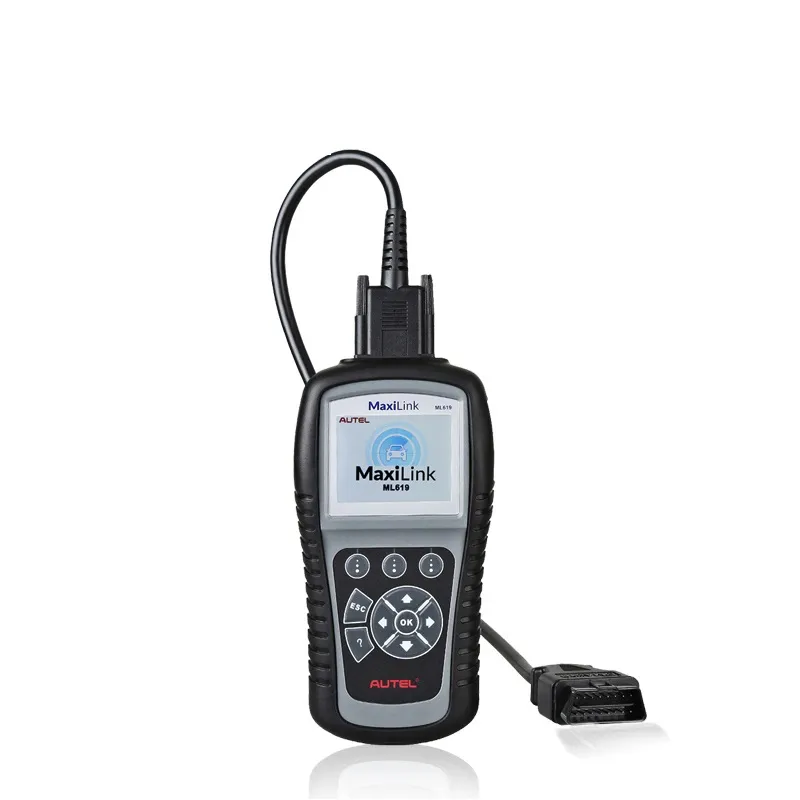

Autel MaxiLink ML619 OBD Diagnostic Scan Tool ABS/SRS System Diagnosis Code Reader Scanner

Autel MaxiLink ML619 Features:

Works on most 1996 and newer vehicles (OBDII & CAN)

Diagnoses ABS/ SRS system codes on most 1996 and newer major vehicle models

Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes

Turns off Malfunction Indicator Light (MIL) and ABS/SRS warning lights, clears codes and resets monitors

Views freeze frame data

Reads, stores and playbacks live PCM datastream and live sensor data

Graphs data

Retrieves vehicle information (VIN, CIN and CVN)

Troubleshooter code tips guide technicians to the root cause of trouble codes faster

Multilingual menu and DTC definitions – English, Spanish and French

TF memory card for data backup and software update

Internet updatable

Prints data via PC

Autel MaxiLink ML619 Vehicle coverage:

For Acura, for Audi, for Bentley, for Benz, for BMW, for Bugatti, for Chrysler, for Ford, for EU Ford, for GM, for Honda, for Hyundai, for Infiniti, for Isuzu, for Jaguar, for Kia, for Land Rover,for Lexus, for Maybach, for Mazda, for Mini, for Mitsubishi, for Nissan, for Opel, for Porsche, for Saab, for Scion, for Seat, for Skoda, for Smart, for Sprinter, for Suzuki, for Toyota, for Vauxhall, for Volvo, for VW,

1) OBD II CONNECTOR – connects the scan tool to the vehicle’s Data Link Connector (DLC).
2) LCD DISPLAY – indicates test results.
3) FUNCTION BUTTONS – corresponds with “buttons” on screen for executing commands.
4) ESC BUTTON – cancels a selection (or an action) from a menu or returns to the previous screen.
5) LEFT SCROLL BUTTON – when looking up DTC definitions, press to review previous character and to display additional information on previous screens if present; press to view previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
6) HELP BUTTON – displays help information and accesses DTC Guide function.
7) DOWN SCROLL BUTTON – press to move down menu and submenu items in menu mode. When more than one screen of data is retrieved, press to move down to information on next screen. When looking up DTC, it is used to change value of selected character.
8) RIGHT SCROLL BUTTON – when viewing DTC definitions, press to move to next character and to view additional information; press to view next screen or next frames of recorded data. It is also used to view next trouble code when viewing DTCs.
9) OK BUTTON – confirms a selection (or action) from a menu.
10) UP SCROLL BUTTON – press to move up menu and submenu items in menu mode. When more than one screen of data is retrieved, press to scroll to the previous screens. When looking up DTC, it is used to change value of selected character.
11) USB CONNECTOR – connects the scan tool to the Windows PC for printing.
12) TF CARD SLOT – holds the TF card.

Autel MaxiLink ML619 Specifications:

Display: TFT color display (320 x 240 dpi)

Operating Temperature: 0 to 60°C (32 to 140 F°)

Storage Temperature: -20 to 70°C (-4 to 158 F°)

External Power :  8.0 to 18.0 V power provided via vehicle battery

Length\Width\Height:  199 mm (7.83”)\104.5 mm (4.11”)\37.5 mm (1.48”)

Weight:0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire)

Autel MaxiLink ML619 Accessories:

l x Protective Nylon Case

l x USB Cable

l x OBDII Cable

l x User’s Manual
