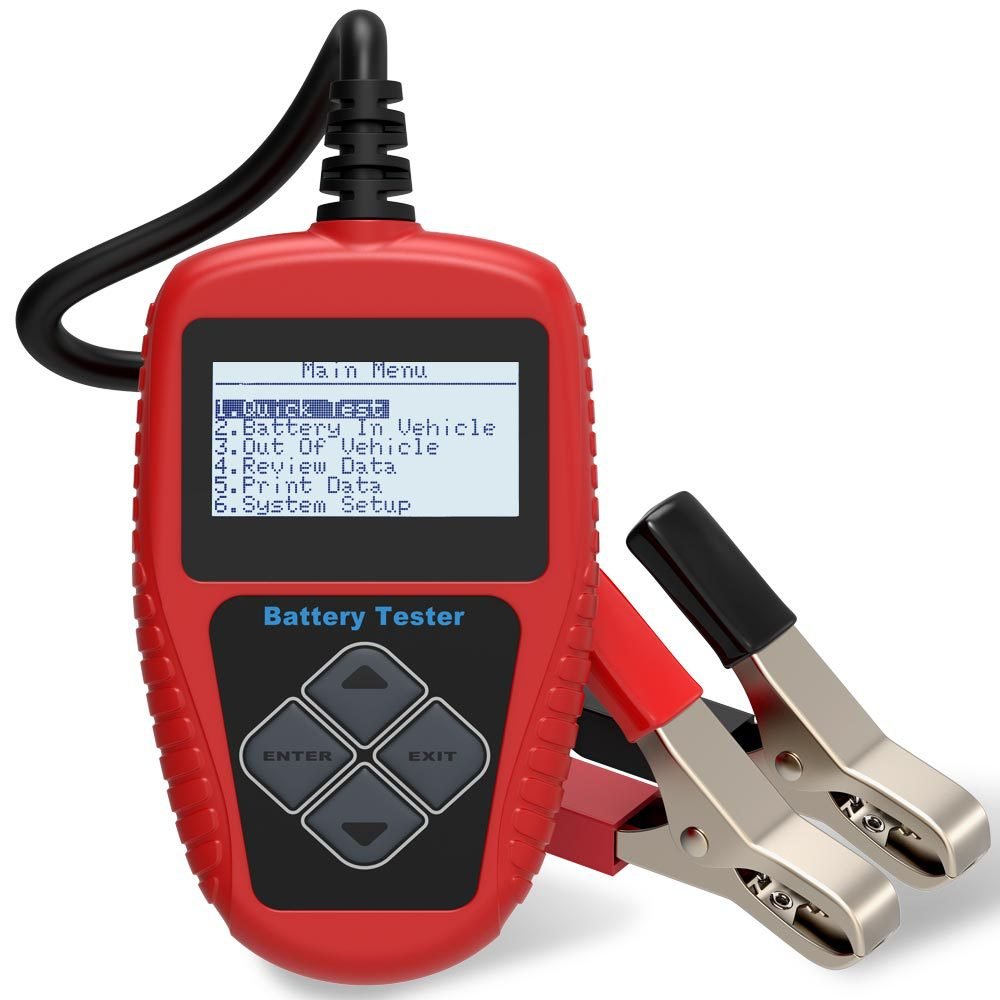

BA101 Automotive 12V Vehicle Battery Tester

BA101 Automotive 12V Vehicle Battery Tester

Top 12 Reasons to get BA101 Automotive 12V Vehicle Battery Tester :

1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English,
9. Quick test—input battery volume (AH), then it can show the battery status.
10. Vehicle cranking system test— cranking time, voltage and status.
11. Vehicle charging system test—load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function

BA101 Automotive 12V Vehicle Battery Tester Benefit:

1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
4. Able to test condition of discharged battery.
5. Consistent and repeatable results.
6. Provides unique indication of battery conditions.
7. Provides check the Alternator’s charging and Starter’s cranking conditions. It is maintenance free and no internal batteries required.
8. Powers up when connected to the battery posts during testing.

BA101 Automotive 12V Vehicle Battery Tester Function:

Test Result: Good or Replace
Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m )
Life in percentage (%)
Cranking system
Charging system

Application:

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

Operating Parameters:

System voltage: 12 Volts
Input voltage range: 9V~15V
Power requirements: No internal batteries required. Power on when hooked up during testing.
Testing range: 100 ~ 2000 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN
AH range: 30-220AH

Package including:

1pc x BA101 Automotive 12V Vehicle Battery Tester
