BDM100 V1255 Programmer Professional ECU Chip Tuning Tool

Highlights:

Professional ECU Chip Tuning Tool

Software:V1255

Language:English

System Requirement: Win XP /win7 32bits(close anti-virus program)

Note:Disconnect internet when install&run software.

Description:

BDM100 is a universal reader/programmer (it does not require our RACE software necessarily) that allows the user to read and program files in the ECU supplied with for MOTOROLA MPC5xx processor (essential).

BDM 100 requires the ECU to be opened, “on the bench”, as the reading/programming operations are realized by linking a flat cable to specific area the ECU (the tool, on the other side, is linked to the USB port of a computer).

BDM 100 allows to create perfect copies of the whole software of an ECU (after having read the original ECU software).

Software Allows To Read&Program The WHOLE ECU Content Of:

29BL802 SSOP eprom file (or ROM memory with maps if eprom physically not present)

For MOTOROLA MPC5xx Processor file

Serial Eprom content.

Please Note: even in the case of the ECU blocking, due to the wrong checksum recalculation, the ECU can always be reprogrammed and then retrieved (if the original software has been previously stored).

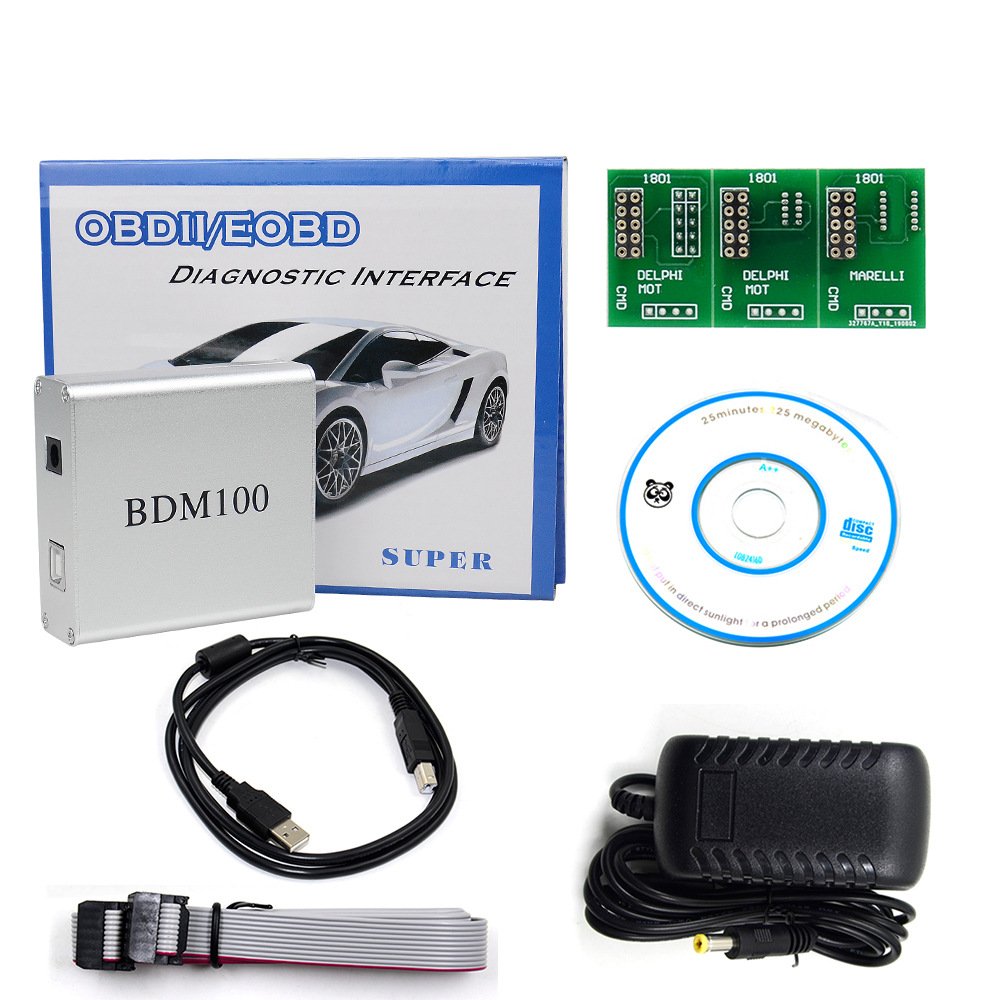

Package Included:

1 x BDM100 Interface.

1 x ECU connecting cable with 3 adapters

1 x USB connecting cable

1x 12V Power Supply
