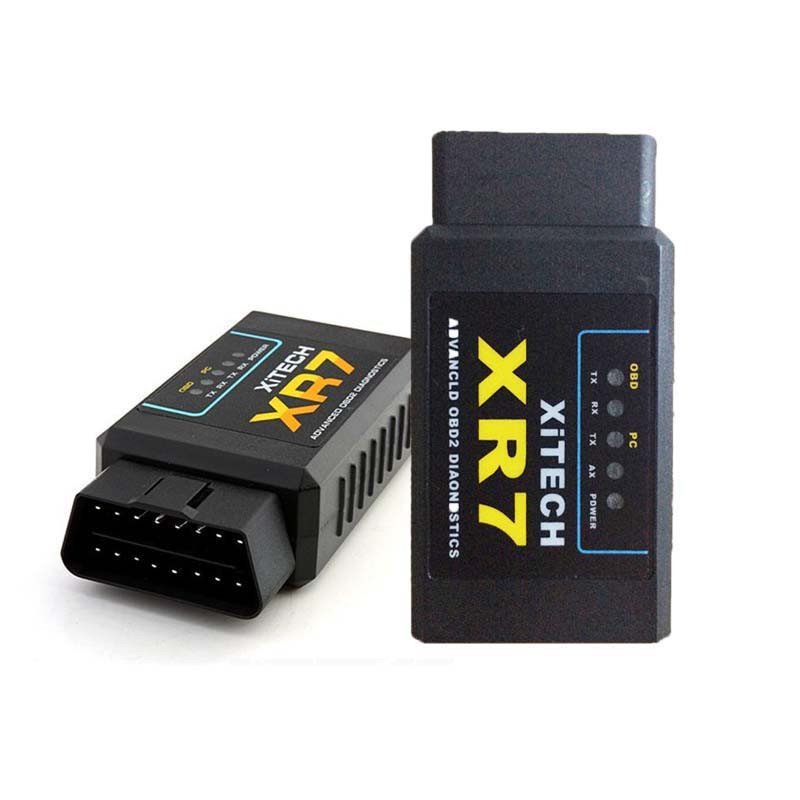

ELM327 XR7 Bluetooth OBD2 OBDII Car Scanner Tool

Product Features:

Newly developed wireless (Bluetooth) car scan tool.
Works with MOST OBD-II compliant vehicles.
Support Android phone systems,not support IOS system.
Supported Software Compatible for Windows and DOS.
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
(over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (“Check Engine” light).
Display current sensor data, including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel
System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure,
Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor
voltages/associated short term fuel trims, Fuel System status, Fuel Pressure.

ATTENTION:

It only works with car (can not support Diesel or Truck).

ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models.

If the CD is broken, pls contact us to sent the software to you.

It supports follow OBD-II protocols cars after 1996 year ONLY:

0.Automatic
1. ISO9141-3 (5 baud init, 10.4Kbaud)
2. ISO14230-4 (5 baud init, 10.4 Kbaud)
3. ISO15765-4 CAN (11bit ID, 500 Kbaud)
4. ISO15765-4 CAN (29bit ID, 500 Kbaud)
5. ISO15765-4 CAN (11bit ID, 250 Kbaud)
6. ISO15765-4 CAN (29bit ID, 250 Kbaud)
7. KWP2000 5 10.4 Kbaud

Specifications:

Material: Plastic
Color: Black
Size: 9.0 x 4.5 x 2.5 cm / 3.54 x 1.77 x 0.98 inches

PACKAGE LIST

1 x XR7 Bluetooth ELM327 Car Scanner Tool
1 x CD Driver
