JDiag M300 OBD2 Motorcycle Scanner Car Diagnostic Tool Clear Fault Codes

Do you have this problem:

1. The motorcycle was left idle in the garage for a few months during business trips and travel, and could not be started when it was in use.

2. Forget to turn off the lights when leaving the car battery drain too much power can not start.

3. Winter temperature is too low, the vehicle battery capacity is not enough, serious power loss can not start normally.

4. Motorcycle circuit failure, resulting in failure to start, long repair time.

M300 advantage: Reset service

M300 Funtion:

1. Read system information

2. Read data streams

3. Read fault codes

4. Clear fault codes

5. Freeze fault code

6. Battery life detection

7. CO idle adjustment

8. Troubleshooting guide

9. Print test results

10. Upgrade online

11. ABS system test

Description:

M300 Dual Use Motorcycle Diagnostic Scanner Motorcycle Diagnostic Tester Help Technician Diagnose Problems and Make Repairs Faster

Features:

Wide Application: Support more than 70 motorcycle, such as: For ADIVA, For ARCTIC CAT, For bmw, For DUCATI, For HYOSUNG, For KYMCO, For PIAGGIO, For SYM, For AEON, For BAJAJ, For BRP, For HARTFORO, For KAWA, For PGO, For Royal Enfield, For TRIUMPH, For APRILIA, For BENELLI, For BRIXTON, For HONDA, For KT, For YAMAHA, For SUZUKI, For VESPA, etc.

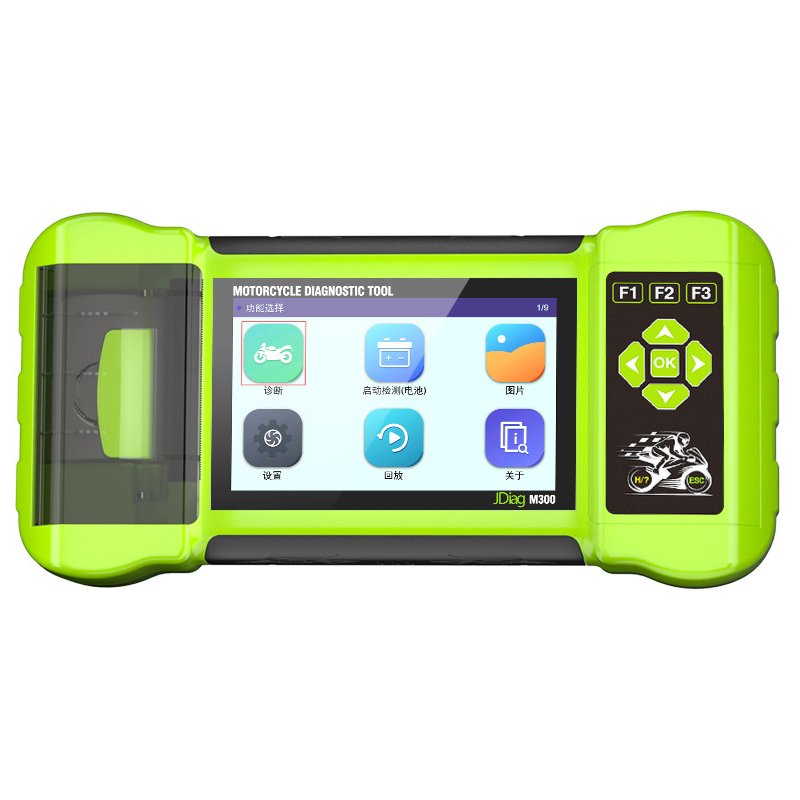

5.0-inch Large Display: The M300 is a new generation of handheld motorcycle diagnostic tool with a large 5.0” display and a rich, clear interface that covers virtually all of the manufacturer’s diagnostic functions. Users can choose their own theme color, support data screenshots and image playback.

Dual System Testing: Motorcycle diagnostic instrument +battery tester.

1.It allows technicians to trace (injectors, ignition, coils, fuel pumps, etc.),

2.perform factory service procedures such as resetting service lights,

3.performing injection adjustments (CO Trimmer) adjusting the throttle position sensor (TPS), setting automatic adaptive parameters,performing idle adjustments.

4..Multiple battery test modes, Start detection, Battery waveform, Standard Testing, Quick test, Charging test.

5.Support Software Upgrade and Printing: Support software online upgrade and print diagnostic report.

6.M300 supports printer, picture view, data logging and playback, battery detection, error report feedback and other functions.

7.With fast running speed, smooth interface operation and excellent data processing capability, it can help technicians diagnose problems and perform repairs faster.

8.Multiple Language: Support English, German, French, Spanish, Portuguese, Traditional Chinese, Cambodian, Thai, Turkish, Vietnamese, Indonesian, Japanese, Korean.

Specifications:

Item name: Motorcycle Diagnostic Tester

Model: M300

Material: ABS

Color: Green

Screen size: 5 inch TFT true color display

Connect and update: Support

Operating voltage: 9-18V

Operating temperature: 0 to 60°C(32to 140°F)

Storage temperature: -40 to 70°C(-40 to 158°F)

Item size: 25*12.4*4.5cm/9.84*4.88*1.77in

Weight of the whole set: 2.62kg/5.77lb

Package:

1x M300 Host.

1x 13 adapted cables.

1x USB cable.

1x Zipper bag.

1xPckage box.

1x Users manual.

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.

Support Vehicle Lists:

ADIVA

AEON

APRILIA

ARCTIC CAT

BAJAJ

BENELLI

BMW

BRP

BRIXTON

DUCATI

HARLEY

HARTFORD

HONDA

HYOSUNG

KAWASAKI

KTM

KYMCO

PGO

YAMAHA

PIAGGIO

ROYAL ENFIELD

SUZUKI

SYM

TRIUMPH

VESPA

Support Multi-Languages: English; Spanish; German; French; Vietnamese;  Indonesian;  Thai; Portuguese; Chinese

Specifications:

Display screen: 5.0 inches

Operating Voltage: 9-18V

Operating temperature: 0-60 degrees celsius

Storage temperature: -40-70 degrees celsius
