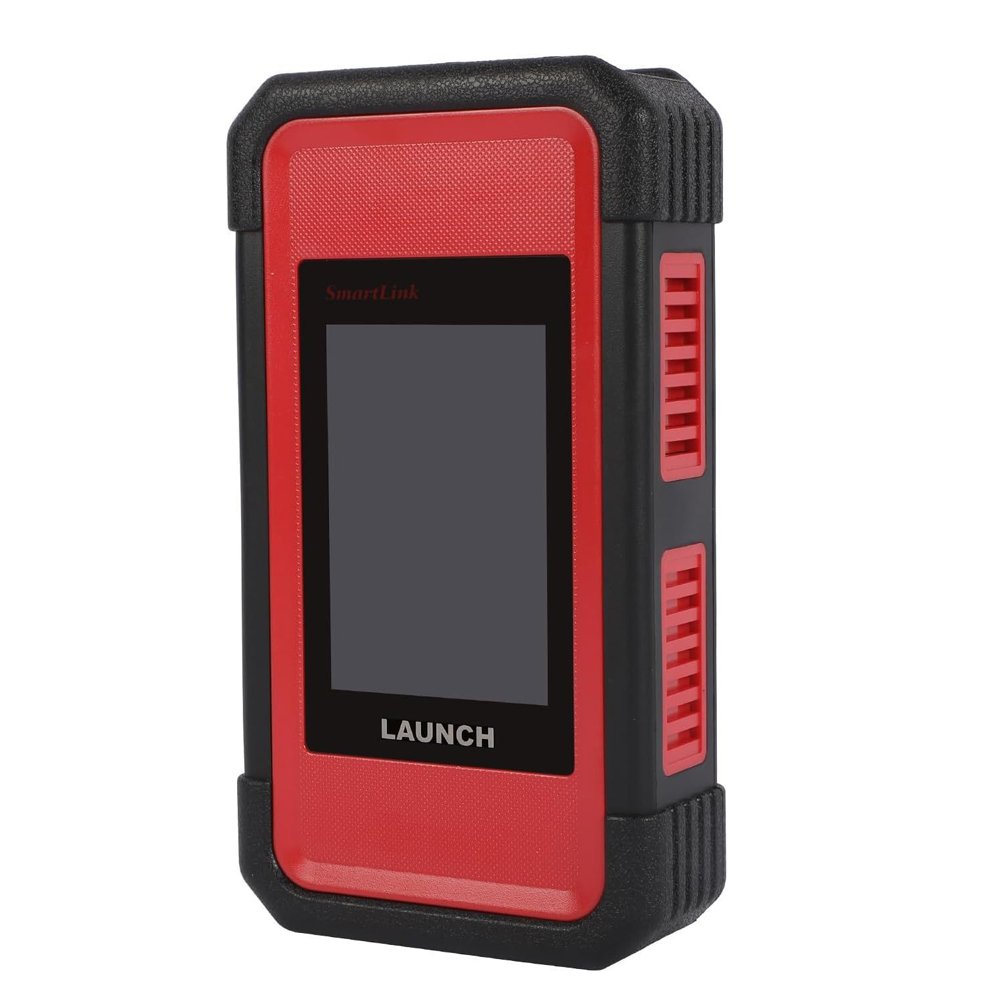

Launch X-431 SmartLink C 2.0 Heavy Duty Truck Detector for PRO3/V+/PRO3S+

Features:

Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device
Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.

The SmartLink C system consists of the following two parts:

1.SmartLink Service Platform — For binding the SmartLink C dongles and posting the remote repair orders (Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)
2. SmartLink C Dongle — Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.

Specifications:

CPU: dual processor: Cortex-A7+Cortex-M7
Operating system: Linux
Resolution: 320×480
Power: <6w
Storage: 8GB
Memory: 256M
Working temperature: 0℃~50℃
Working voltage: 9V DC—36V DC
Dimensions: 200mm×110mm×47mm
Communications: WIFI/Bluetooth/Ethernet

Package Includes:

1pcs x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pcs x HD15F to OBDII 16 male integrated test connector, RoHS
1pcs x DB15F to HD15F test main line (without DC), L=1000mm, RoHS
1pcs x Double clamp power cord (English, without LAUNCH), RoHS
1pcs x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pcs x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pcs x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pcs x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
1pcs x X431 PAD4HDB15M-For CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pcs x X431 PAD4HDB15M-For HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS
4pcs x X-431 PAD IV electric control adapter cable 1,
4pcs x X-431 PAD IV electric control adapter cable 2,
4pcs x X-431 PAD IV electric control adapter cable 3,
4pcs x X-431 PAD IV electric control adapter cable 4,
4pcs x X-431 PAD IV electric control adapter cable 5,
4pcs x X-431 PAD IV electric control adapter cable 6,
4pcs x X-431 PAD IV electric control adapter cable 7,
4pcs x X-431 PAD IV electric control adapter cable 8,
4pcs x X-431 PAD IV electric control adapter cable 9,
1pcs xUniversal password envelope (without LAUNCH),
1pcs xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start
