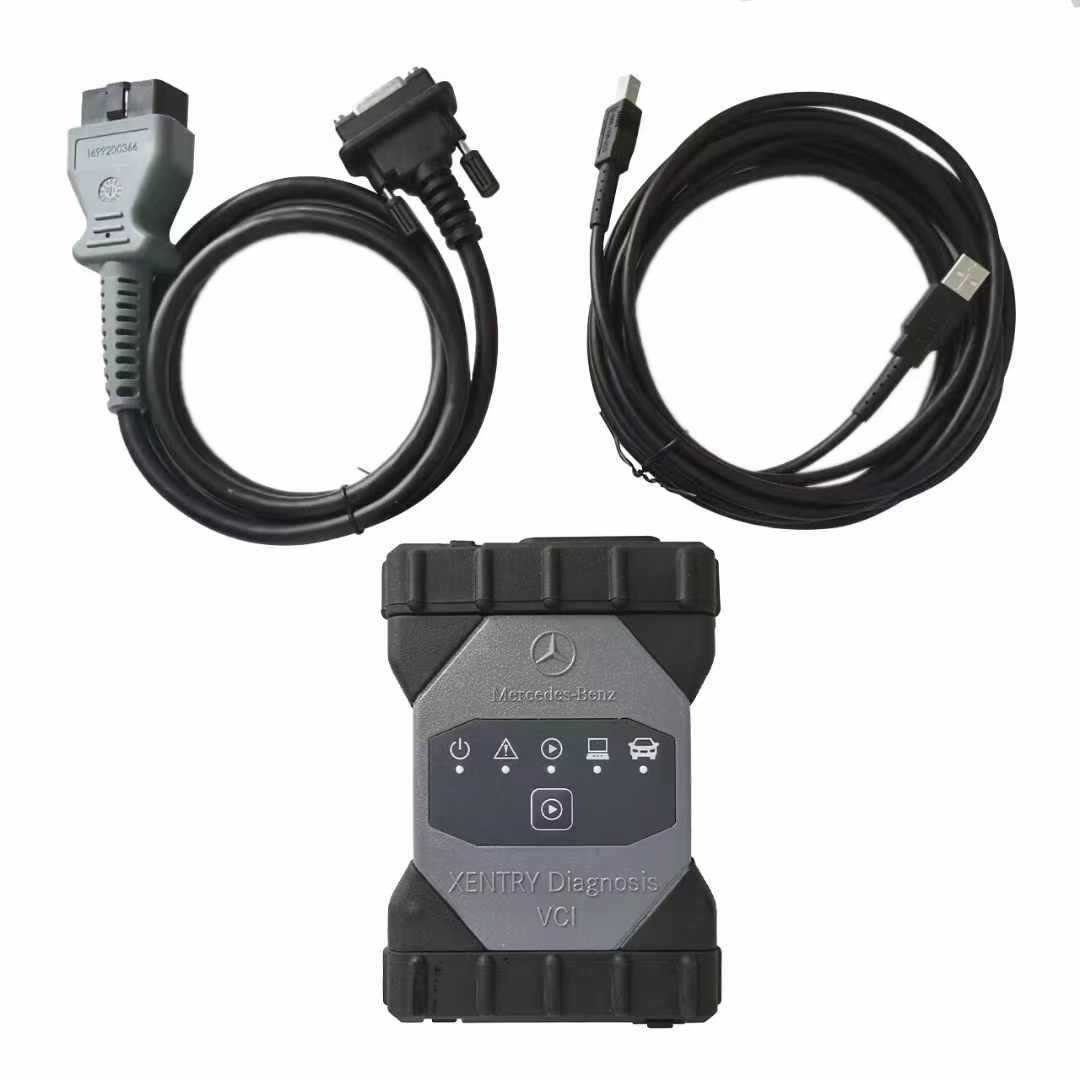

MB STAR C6 DOIP XENTRY VCI Diagnosis Tool For Mercedes Benz Vehicles

Mercedes Benz Xentry diagnosis VCI DOIP C6 Features:

Can be used for all model series of For Mercedes For Benz vehicles
Support DoIP, cover more functions during SCN Coding than SD C4/C5
Functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
Diagnosis updates no longer necessary – firmware updates required on rare occasions

Does not need a power supply unit for external power supply
Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
Engines (All Gasoline & Diesel Systems)
Transmissions and Electronic Selector Modules
Airmatic and Active Body Control Suspension Systems
Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
Drive Authorisation System
Sam (Signal Acquisition) Modules
Electronic Ignition System (EIS)
Pneumatic System Equipment and ATA functions
Air Conditioning / climate control Systems
Instrument Cluster
Tyre Pressure Control
Parktronic System
Keyless Go
D2b Command & Audio Gateway (D2B and MOST networks)
TV Tuner
Headlamp Range Adjustment
Seat Electronics
Rvc, RST & Vario Roof modules
Automatic Clutch System ACS
M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
Assyst & ASSYST + systems

Supported systems

Engine
Transmission
Climate control system
SRS (Supplementary restraint system)
ABS
ASR
MPL
GM
BENZ ORIGINAL ANTI-THEFT DASX SYSTEM
System «Keyless-Go» from Mercedes-Benz
OBD-II SYSTEM
Advantages
Light and easy-to-use
No built-in motherboards, hard-drives, fans, displays and batteries
No external power needed
No regular firmware update needed

C6 technical specifications
Supported iTeh Standards

1、ISO-22900-1/2 MVCI with D-PDU Driver
2、ISO13400-1/2/3/4 DoIP Driver
3、CAN-BUS1：HSCAN1/CANFD1：PIN 6/14
4、CAN-BUS2：HSCAN2/CANFD2：PIN 12/13，PIN 3/11，PIN 1/9，
5、CAN-BUS3：FTCAN：PIN 12/13，PIN 3/11，PIN 1/9，
6、K-Line *13
K1-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15
K2-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15
7、ADC input
8、Gigabit eCAT DB26 output
9、100 Mbit USB2.0 HS network card
10、WIFI relay/bridge

Supported protocols:

1、KW2CVW
2、CYCLERX
3、UDS
4、KW2C3PE
5、KW2C2N（SAE J1939）
6、485（SAE J1708）
7、KW2CANN
8、KW2000N
9、KW2K2N
10、KW2000PE
11、DoIP
