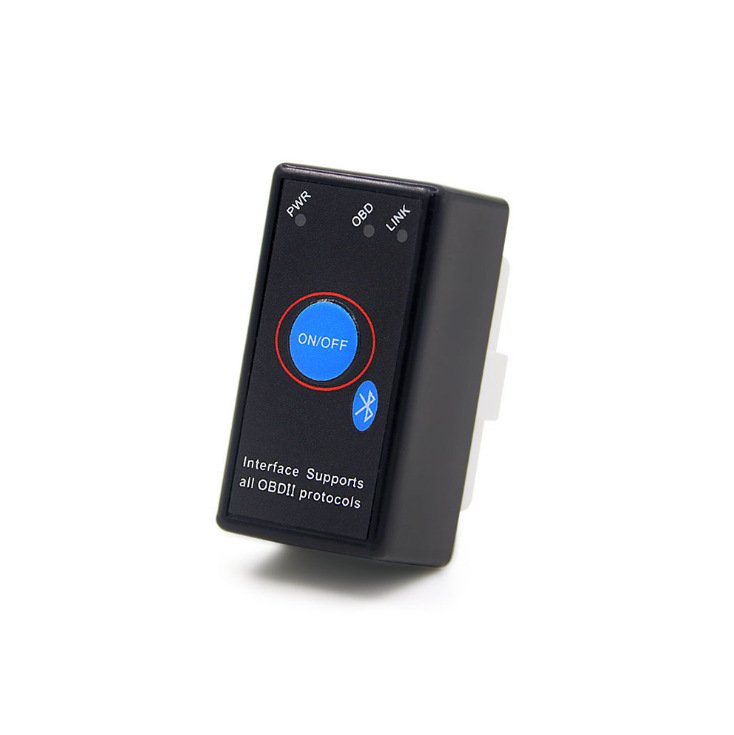

MINI ELM327 OBD2 V1.5 Bluetooth 5.0 Scanner with Power Switch for Multi-brands CAN-BUS

Mini OBD2 Bluetooth 5.0 scanner with power switch for Multi-brands CAN-BUS as same as ELM327 Bluetooth 5.0 with switch. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Bluetooth 5.0 scanner with power switch for Multi-brands CAN-BUS as same as ELM327 Bluetooth 4.0 with switch.

Top 6 Reasons To Get Mini OBD2 Bluetooth 4.0 scanner with power switch:

1. Version: V1.5

2. support protocols： 9 protocols

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

6. Have the power switch for turning on or off the power supply.

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Bluetooth 5.0 scanner with switch Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL (‘Check Engine’ light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

Mini OBD2 Bluetooth 5.0 scanner with switch Specifications:

Communication: Bluetooth 5.0

Support System: IOS, Android, Symbian, Windows

Working Voltage: 9v ~ 16v

Operating temperature: -40 ℃ ~ 85 ℃

Compatible systems:

Software support platform: Windows XP, Windows 7/8/10, IOS, Android, Symbian.

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS: Auto Doctor, Mini OBDII,ZUS

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScop
