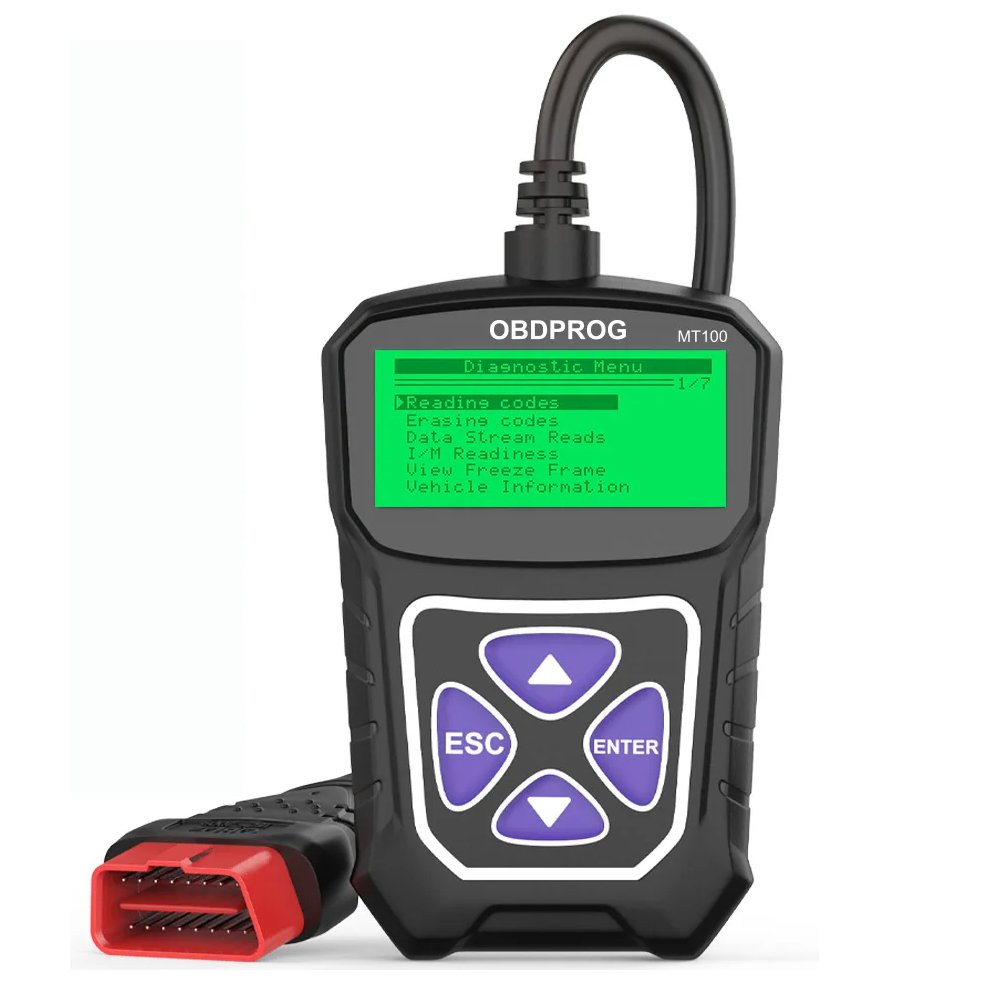

OBDPROG MT100 Can OBD2+EOBD Code Reader Automotive Scanner Car Engine Tester Car Diagnostic Tool Multi-language

Before Shopping:

This device is not compatible with all cars. Even if it is compatible with a car brand, it does not mean that it is compatible with all different models and release years of this brand. Especially you want it for a special function, please contact with seller first. please give me your car brand + model + release year. I will check if it’s compatible for you.

Please read the details page carefully before placing an order. If you are not sure whether your model is compatible with MT100, please feel free to contact us and we will answer for you.Please provide your model, release year, and whether it is compatible with OBD2.

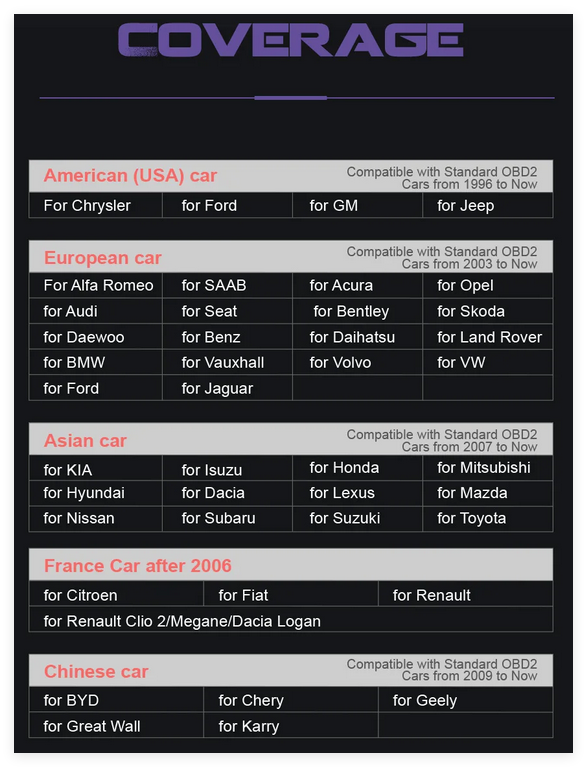

MT100 Support Car Models:

American (USA) car:

Compatible with Standard OBD2 Cars from 1996 to Now: for Chrysler, for Ford, for GM, for Jeep

European car:

Compatible with Standard OBD2 Cars from 2003 to Now: for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar

France Car after 2006:

for Citroen,for Fiat,for Renault,for Peugeot
Not Support for Renault Clio/Megane/Dacia Logan.

Asian car

Compatible with Standard OBD2 Cars from 2007 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Toyota

Chinese car:

Compatible with Standard OBD2 Cars from 2009 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

NOTE:

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don’t have Special Functions,like ABS Reset,Airbag Reset… Please leave us message in below format, we will reply you within 8 hours. For example : xx, 2005, 2.0cc, Diesel

Tips:

For Electric car and Hybrid car and 24V trucks did not support,like Nissan leaf and so on.
Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years. For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years,
Not Support Opel Corsa c 2004 1.3 CDTI
Not support Citroen C4/C5 .
Not support Chevrolet cars,
Not support Renault Logon , Megane, clio

OBDPROG MT100 Supports Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

The OBDPROG MT100 OBDII/EOBD Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles to enable technicians to accurately diagnose even the toughest problems.Sophisticated yet easy-to-use ,this ergonomic scan tool makes your vehicle service experience much more pleasant!

OBDPROG MT100 can help you solve these problems easily

➤Solve with car ignition difficult
➤Solve with engine fault light bliking
➤Solve with vehicle liquid leakage
➤Solve with exhaust emission exceed
➤Solve with speeding up powerless
➤Solve with large fuel consumption

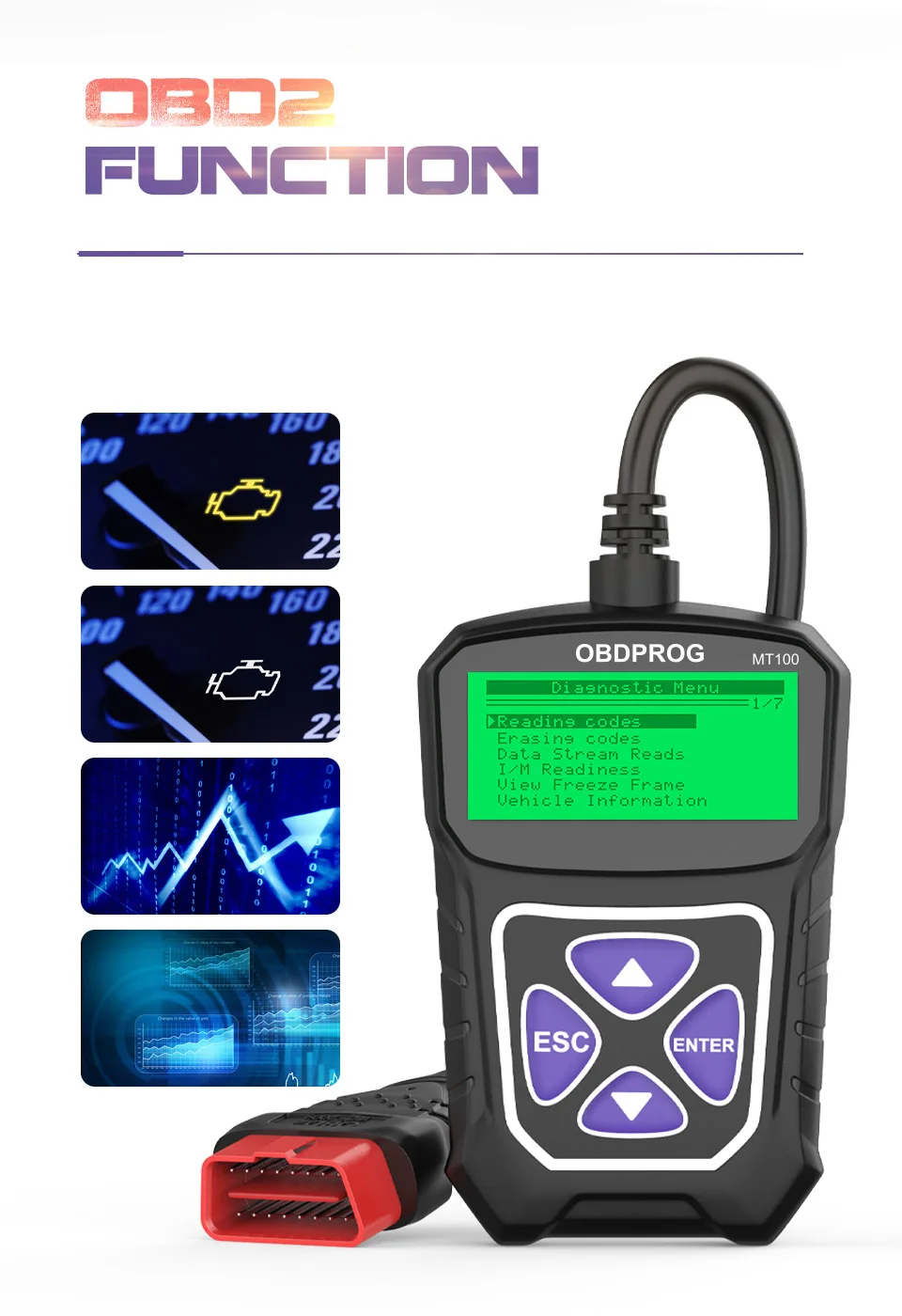

OBDPROG MT100 Basic Funtions

1.Reading Codes Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.View Freeze Frame Data Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

6.Read Vehicle Information Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

7.Turn off engine warning light

8.Smoke emission Check

9.Engine EPC Check

10.O2 Monitor Test

OBDPROG MT100 Basic Funtions

1.Reading Codes Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.View Freeze Frame Data Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

6.Read Vehicle Information Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

7.Turn off engine warning light

8.Smoke emission Check

9.Engine EPC Check

10.O2 Monitor Test

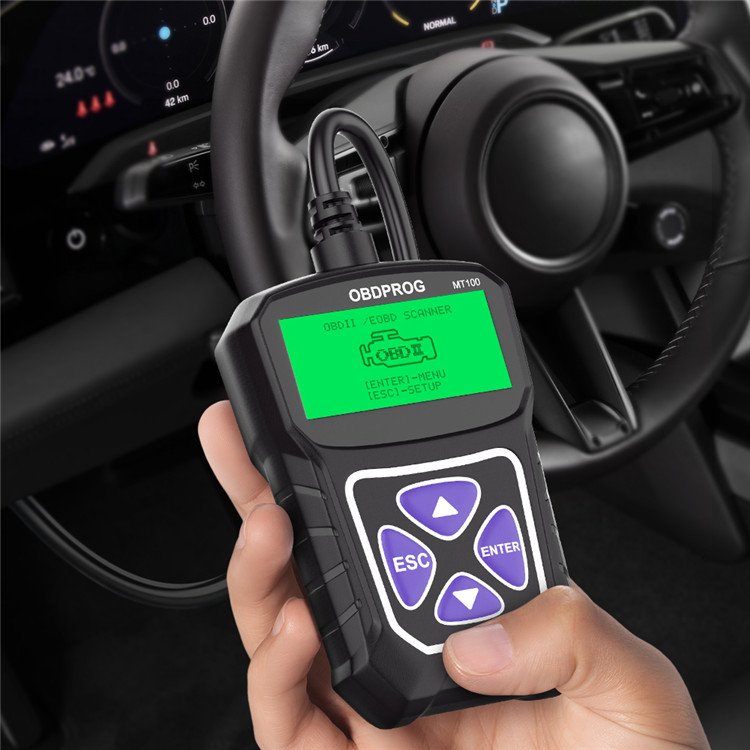

IPS green screen, clearer in the dark

The high-definition green screen can protect the user’s eyes and see more clearly in the dark.

OBD2 Diagnostic Tool Support Multi Language

It supports English, Russian, Germany, Spanish, French, Dutch, Portuguese.
You can set up the language yourself

Easy to Use via OBD2 Port

Cable connection is more stable, can be used in no signal environment

Caution: Don’t connect or disconnect ant test equipment with ignition on or engine running

How To Do Diagnose With MT100

1): Turn the ignition off.
2): Locate the vehicle’s 16-pin Data Link Connector(DLC)
3): Plug into the scan tool cable connector to the vehicle’s DLC
4): Turn the ignition on, Engine can be off or running
5): Press ENTER button to enter main menu, Use UP/DOWN scroll button to select diagnostic from the menu

Package list

*1 MT100 OBD2 scanner
*1 User manual
*1 Carton package
