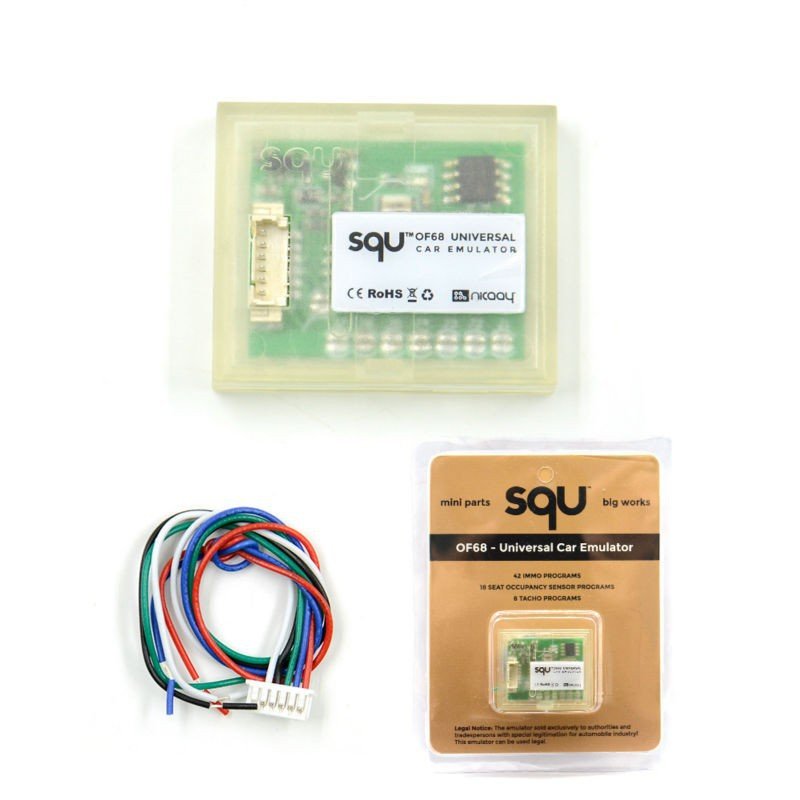

SQU OF68 Universal Car Emulator Supports IMMO/Seat Occupancy Sensor/Tacho Programs

The SQU OF68 universal car emulator allows you to do:

Move the original immobiliser signal
Place the original immobiliser signal
Place the ESL, enable the car to start
ECK the EZS on the table
ECK the correctness of the airbag system
Art the tacho on the table

The SQU OF68 emulator comes with 68 programs that are dedicated to hundreds of car models and types of ECU.

You are allowed to choose from any of folllowing program:

1. Immo programs
2. Seat occupancy sensor programs
3. Tacho programs

The vast majority of programs can be used multiple times.
Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.

Immo Programs:

1. VW automatic immo OFF (single use)
2. VW automatic immo ON (single use)
3. VW without CAN
4. VW – Hitachi
5. VW – Valve Code
6. VW EDC15 immo OFF (single use)
7. VW EDC15 immo ON (single use)
8. VW EDC16 K-LINE immo OFF (single use)
9. VW EDC16 K-LINE immo ON (single use)
10. VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)
11. VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)
12. VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)
13. VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)
14. VW ME7 immo OFF (single use)
15. VW ME7 immo ON (single use)
16. BMW EWS II and EWS III 3.2 systems
17. Chrysler
18. Citroen, Peugeot with CAN
19. Daewoo 1
20. Daewoo 2
21. Fiat without CAN
22. Fiat with CAN
23. FSO Polonez
24. Honda
25. Kia Sportage 2.0TD
26. Mercedes CR without CAN Infrared
27. Mercedes CR1 with CAN WSP
28. Mercedes CR1 with CAN EZS
29. Mercedes CR1 with CAN infrared
30. Mercedes CR2 with CAN WSP
31. Mercedes ESL – steering wheel column lock emulator
32. Mercedes ESL2 – steering wheel column lock emulator
33. Nissan NATS 4 and 5 32.
34. Opel immo with HC05
35. Renault with CAN
36. Renault without CAN
37. Renault without CAN old ECUs
38. Suzuki with X24C01 memory
39. Suzuki with OKI memory
40. Suzuki 93C56 memory
41. TMS 374 – Citroen, Peugeot, Renault
42. Yamaha

Seat Occupancy Sensor Programs:

1: BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat
2: Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat
3: Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat
4: Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat
5: Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat
6: Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat
7: Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat
8: BMW from 1997 to 2007 , Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat
9: BMW from 1997 to 2007. Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat
10: Mini Cooper from 2002 to 2005 without installed child seat
11: Mini Cooper from 2002 to 2005 with installed child seat
12: Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat
13: Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat

Tacho Programs:

1. Audi Q7 and A6
2. Citroen C4 Picasso
3. EMF Display
4. Renault Kangoo 3 Display
5. Renault Scenc II, Espace IV Tacho
6. Renault Scenic Full
7. Renault Scenic III + Navi
8. VW Passat B6

Package:

1pc x SQU OF68 Universal Car Emulator
