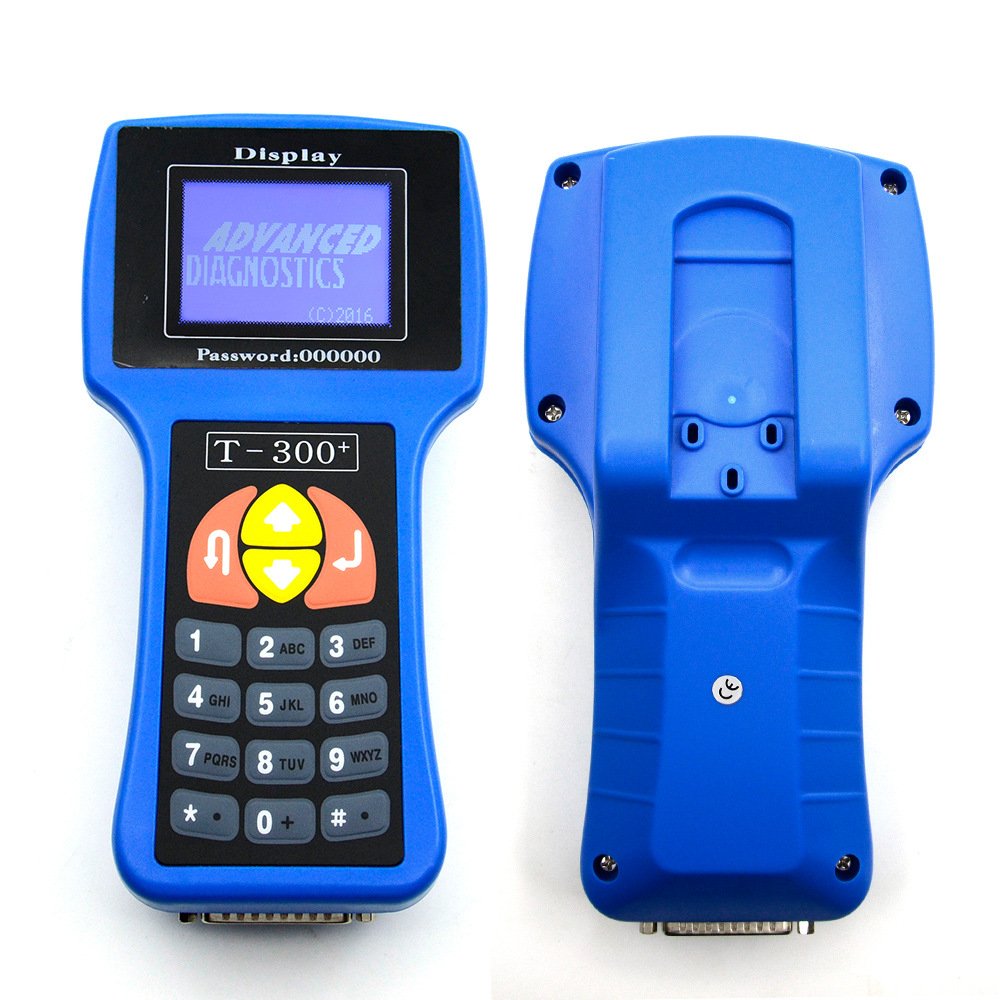

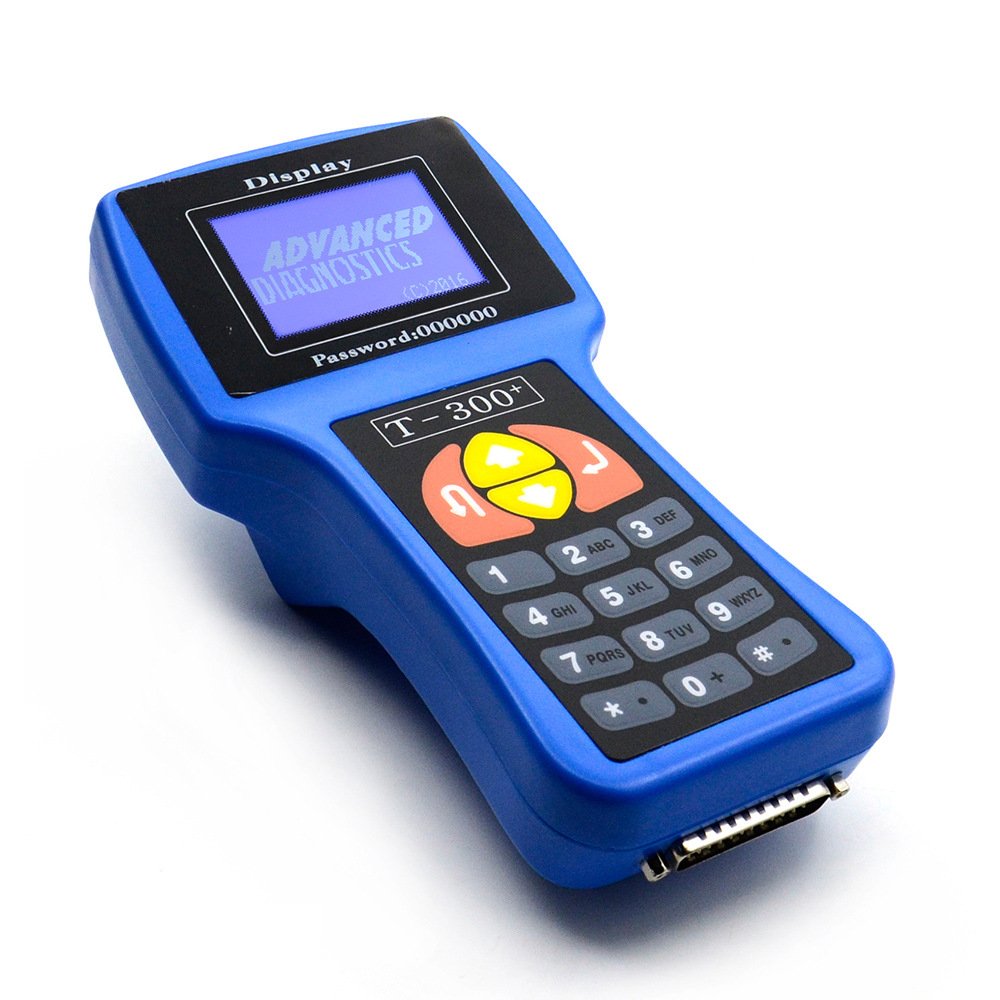

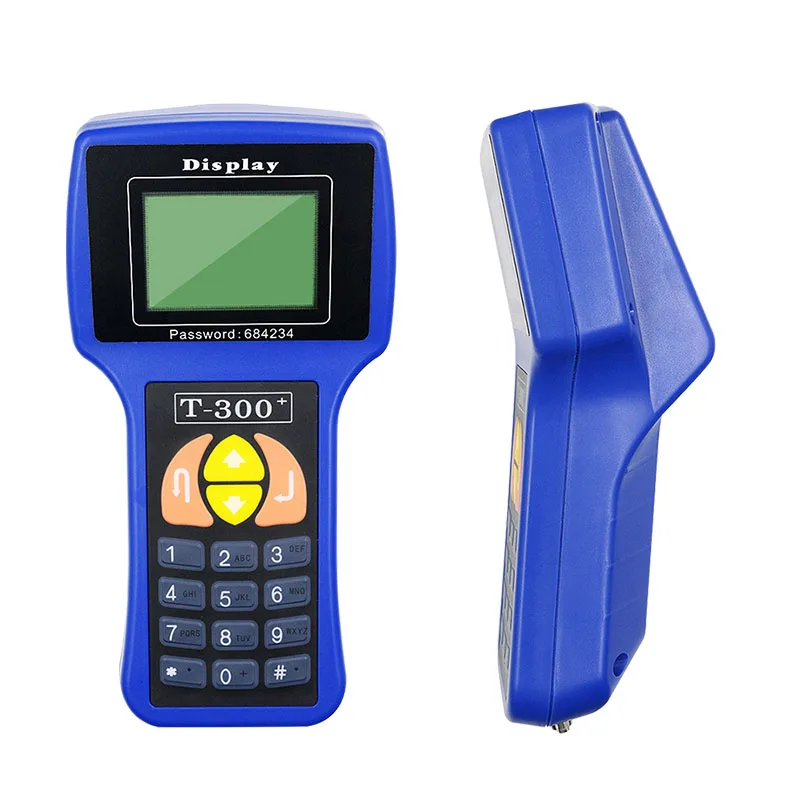

T300 Auto Key Programmer V23.9 Car key Matching Instrument No Tokens Limitation

T300 Auto Key Programmer Highlights:

1. Latest version: V23.9

2. English OR Spanish Optional

3. No Tokens Limitation

4. Blue-black selectivity

5. Support multi-brand cars before 2007 very well.

T300 Auto Key Programmer Functions:

1. Read the vehicle malfunction code
2. Clear the vehicle malfunction code
3. Read the system data stream
Four. Read IMMO /ECU ID
5. Fetch the machinery key code
6. Clear vehicle key memory
7. Program new key
8. Read vehicle key login password
9. Distinguish types of ECU
Ten. ECU -IMMOBILISER programmes
11. Read EKA password
12. Programme new EKA password
13. Programme telecontrol implement

T-300 Key Programmer Install Steps:

VW Transponder key matching with 5 digits Login Code

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

Switch ignition ON with new key. Select: Immobilizer – Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example,if your Login is 1234,enter 1234.
Save
Go to Adaptation
Enter 01 and Channel Number
Enter
The Stored Value is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched,- for ex 2 ;
Enter – Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer – Login. Enter Login Code. Go to Adaptation
Enter 00 in Channel Number
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

Switch ignition ON with new key. Select: Instrument – Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example,if your Login is 1234,enter 01234.
Save
Go to Adaptation
Enter 21 and Channel Number
Enter
The Stored Value is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched,- for ex 2 ;
Enter – Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer – Login. Enter Login Code. Go to Adaptation
Enter 00 in Channel Number
Enter 0 and Save. This will learn ECU with Immobiliser.

T300 Supports Car List:

For Acura,for Audi,for Alfa,for Chevrolet,for Citroen,for Daewoo,for Fiat,for GM,for Honda,for Hyundai,for Isuzu,for Infiniti,for Jaguar,for Kia,for Land Rover,for Lancia,for Lexus,for Lincoln,for Mazda Japan,for Mazda USA,for Mercury,for Mitsubishi,for Nissan,for Peugeot,for Renault,for Rover,for Seat,for Skoda,for Suzuki,for Toyota Japan,for Toyota USA ,for Volkswagen and for VW/Audi (Pin code reading) .

T300 Key Programmer Install Steps:

For VW Transponder key matching with 5 digits Login CodeProcedure for adding transponder keys to vehicles with separate Immobilizer box:Switch ignition ON with new key. Select: Immobilizer – Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example,if your Login is 1234,enter 1234.
Save
Go to Adaptation
Enter 01 and Channel Number
Enter
The Stored Value is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched,- for ex 2 ;
Enter – Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer – Login. Enter Login Code. Go to Adaptation
Enter 00 in Channel Number
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

Switch ignition ON with new key. Select: Instrument – Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example,if your Login is 1234,enter 01234.
Save
Go to Adaptation
Enter 21 and Channel Number
Enter
The Stored Value is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched,- for ex 2 ;
Enter – Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer – Login. Enter Login Code. Go to Adaptation
Enter 00 in Channel Number
Enter 0 and Save. This will learn ECU with Immobiliser.

work for AU-DI-VW Transponder key matching with 5 digits Login Code

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(work for Au-di to year 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)

Switch ignition ON with new key. Select: Immobilizer -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 01 in “Channel Number”
Enter
The “Stored Value” is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, – for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in “Channel Number”
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

(Audi from year 97, Golf 4, Passat B5, B6 )

Switch ignition ON with new key. Select: Instrument -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 21 in “Channel Number”
Enter
The “Stored Value” is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, – for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in “Channel Number”
Enter 0 and Save. This will learn ECU with Immobiliser
