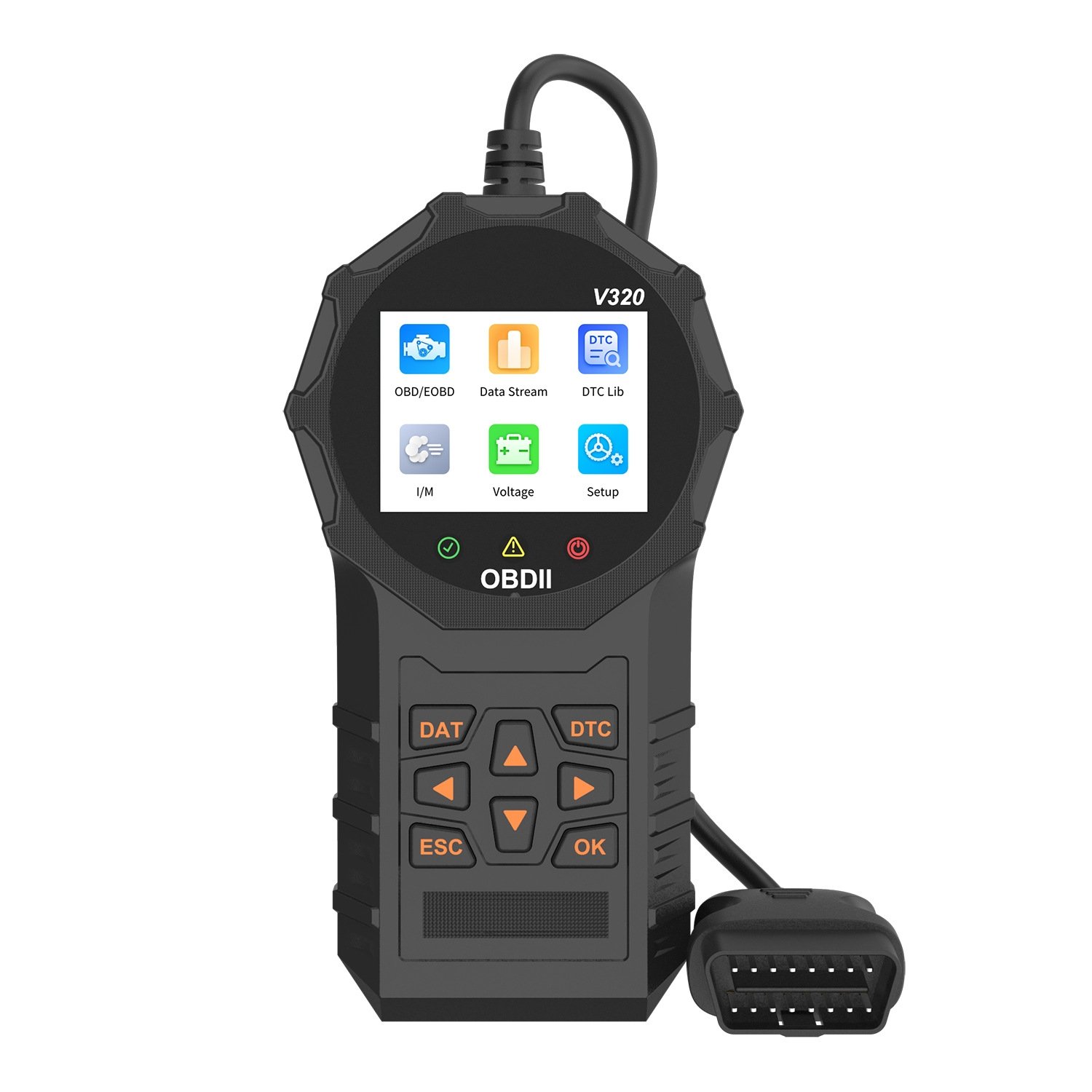

V320 OBD2 Scanner Car Diagnostic Tools Supports Nine Standard Protocols of OBD II/EOBD

1.This is a gasoline car code reader，which supports nine standard protocols of OBD II/EOBD. Plug and play, can quickly read the car’s fault information and vehicle parameters, is a more comprehensive function of the fault diagnosis instrument.

2.Matters needing attention

1.Do not use abrasive cleaners to clean this product.

2.Do not let this product be heated or close to the source of the fire.

3.Do not expose this product to direct sunlight for a long time.

4.Do not try to disassemble this product to make any modifications, because it does not contain any maintenance components.

5.Do not use this product in the room.

6.If you do not plan to use this product for a long time, please store it in a dry environment to avoid extreme temperature and dust.

3.1.Product parameters

Working voltage: DC 9～16V

Working current: about 46～69mA

Operating environment: -20～60℃

Storage temperature: -20～60℃

Dimensions: 195*100*30mm

Eight languages: English, German, Italian, Dutch, French, Spanish, Chinese, Russian.

3.2.Product accessories

Accessories Host *1

Manual *1

3.3.Support Agreement

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

3.4.Main functions

Support nine standard protocols of OBD II/EOBD.

Support car battery voltage test.

Support gasoline model reading, clearing vehicle fault code, reading data stream, freezing frame information, checking MIL status, reading vehicle information, oxygen sensor test, fuel evaporation system (mode 8) test.

Support fault code information query.

Support data stream playback function, view/delete fault code, data stream, and freeze frame information.

4.1.Product operation instructions

When you need to inspect a car, directly plug this product into the car’s OBD connector to start the inspection.

4.2.Matters needing attention

The product is not compatible with new energy vehicles, hybrid vehicles, and models that do not comply with the OBD2 protocol.
